100T

Four-Column Hydraulic Press

Industrial four-column hydraulic press configured for reliable workshop production.

100T

Verified technical data

Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.

01Model Specifications

100T

02Main Cylinder Rated Force

1000 kN

03System Operating Pressure

25 MPa

04Main Cylinder Stroke

400 mm

05Maximum Opening Height

700 mm

06Work Table Dimensions (Distance Between Columns × Length × Width)

660 × 600 mm

07Ram Speed

08Downstroke (Idle)

80–100 mm/s

09Slow Pressing

5–12 mm/s

10Return Stroke

60–80 mm/s

11Ejector Cylinder Rated Force

200 kN

12Ejector Cylinder Stroke

260 mm

13Motor power

7.5 kW

14Net Weight 3000Kg

15Main unit dimensions (L × W × H)

800 × 600 × 3000 mm

16Power unit dimensions (L × W × H)

1100 × 800 × 1300 mm

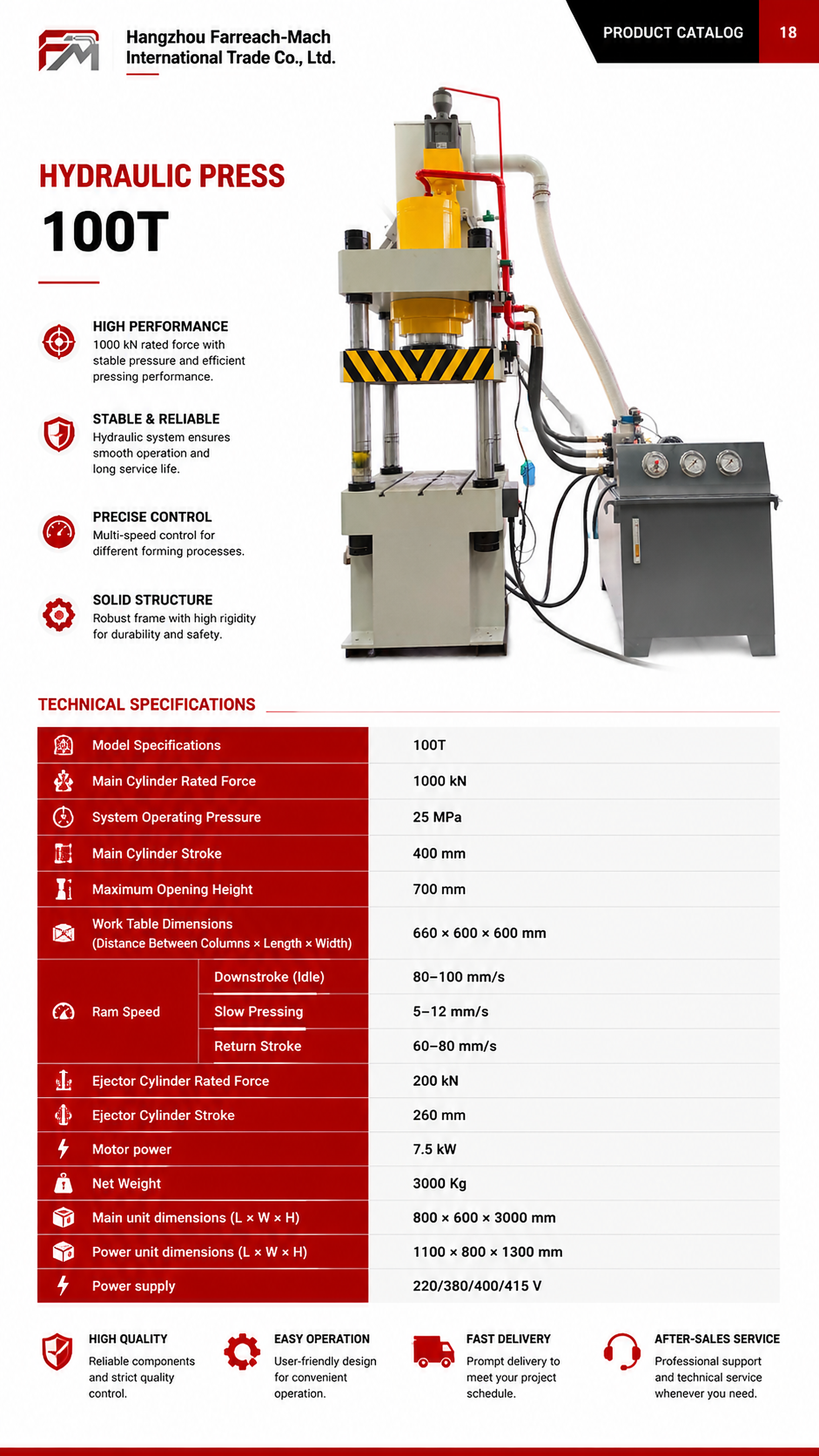

Original source
