200T

Four-Column Hydraulic Press

Industrial four-column hydraulic press configured for reliable workshop production.

200T

Verified technical data

Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.

01Model Specifications

200T

02Main Cylinder Rated Force

2000 kN

03System Operating Pressure

25 MPa

04Main Cylinder Stroke

500 mm

05Maximum Opening Height

800 mm

06Work Table Dimensions (Distance Between Left and Right Columns × Front-to-Back Length)

800×800 mm

07Ram Speed

08Downstroke (Idle)

80-100 mm/s

09Slow Pressing

5–12 mm/s

10Return Stroke

60–80 mm/s

11Ejector Cylinder Rated Force

300 kN

12Ejector Cylinder Stroke

300 mm

13Motor power

11 kW

14Net Weight 4500Kg

15Main unit dimensions (L × W × H)

1200 × 800 × 3900 mm

16Power unit dimensions (L × W × H)

1400 × 1200 × 1400 mm

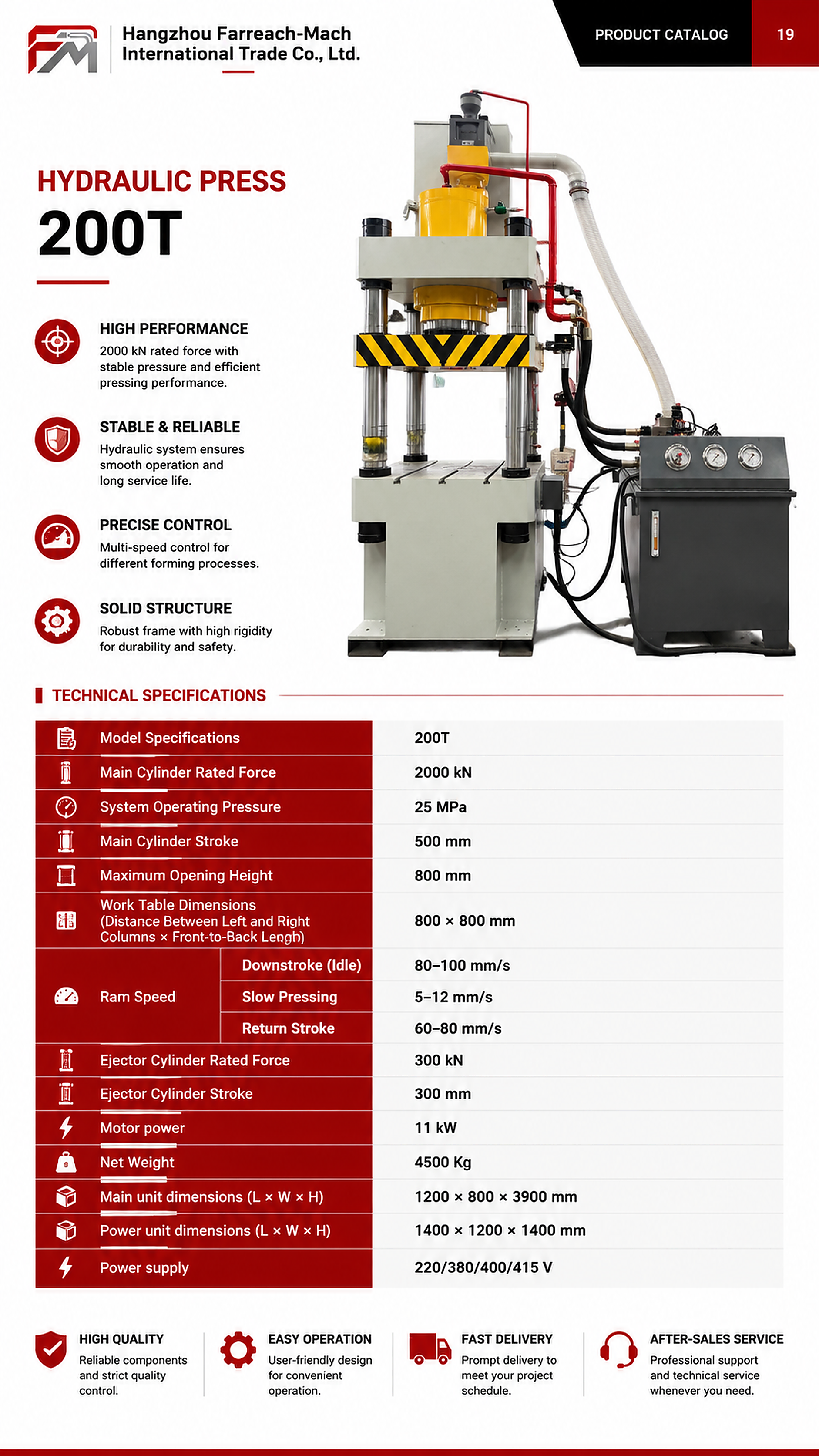

Original source
