315T

Four-Column Hydraulic Press

Industrial four-column hydraulic press configured for reliable workshop production.

315T

Verified technical data

Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.

01Model Specifications

315T

02Main Cylinder Rated Force

3150 kN

03System Operating Pressure

25 MPa

04Main Cylinder Stroke

800 mm

05Maximum Opening Height

1250 mm

06Work Table Dimensions (Distance Between Left and Right Columns × Front-to-Back Dimensions)

1260 × 1200 mm

07Ram Speed

08Downstroke (Idle)

80–100 mm/s

09Slow Pressing

5–12 mm/s

10Return Stroke

60–80 mm/s

11Ejector Cylinder Rated Force

500 kN

12Ejector Cylinder Stroke

350 mm

13Motor power

22 kW

14Net Weight 11000Kg

15Main unit dimensions (L × W × H)

1800 × 1400 × 4500 mm

16Power unit dimensions (L × W × H)

1500 × 1000 × 1500 mm

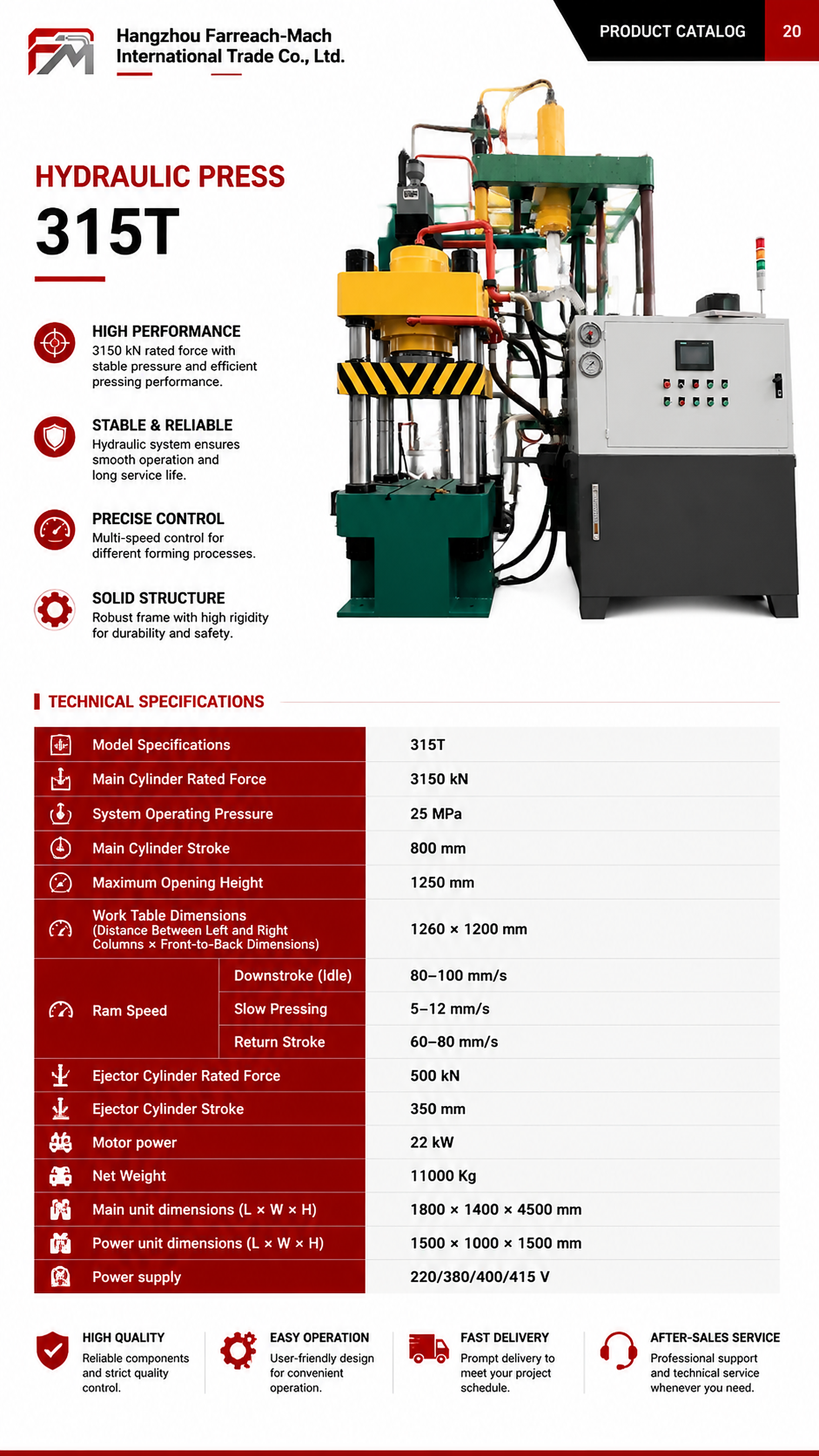

Original source
