3M9740B×130

Cylinder Block & Head Surface Grinder

Industrial cylinder block & head surface grinder configured for reliable workshop production.

3M9740B×130

Verified technical data

Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.

01Worktable Dimensions

1300 × 500 mm

02Maximum Processing Length

1300 mm

03Maximum Processing Width

400 mm

04Maximum Processing Height

800 mm

05Grinding Wheel Travel

60 mm

06Worktable Travel Speed

0–300 mm/min

07Grinding Wheel Diameter

410 mm

08Main Motor Speed

960 rpm

09300–1400 rpm (Variable Frequency Speed Control)

10Main Motor Power

2.2 kW

11Machine Net Weight

2.4 tons

12Machine Gross Weight

2.6 tons

13Overall Dimensions

2920 × 1100 × 2275 mm

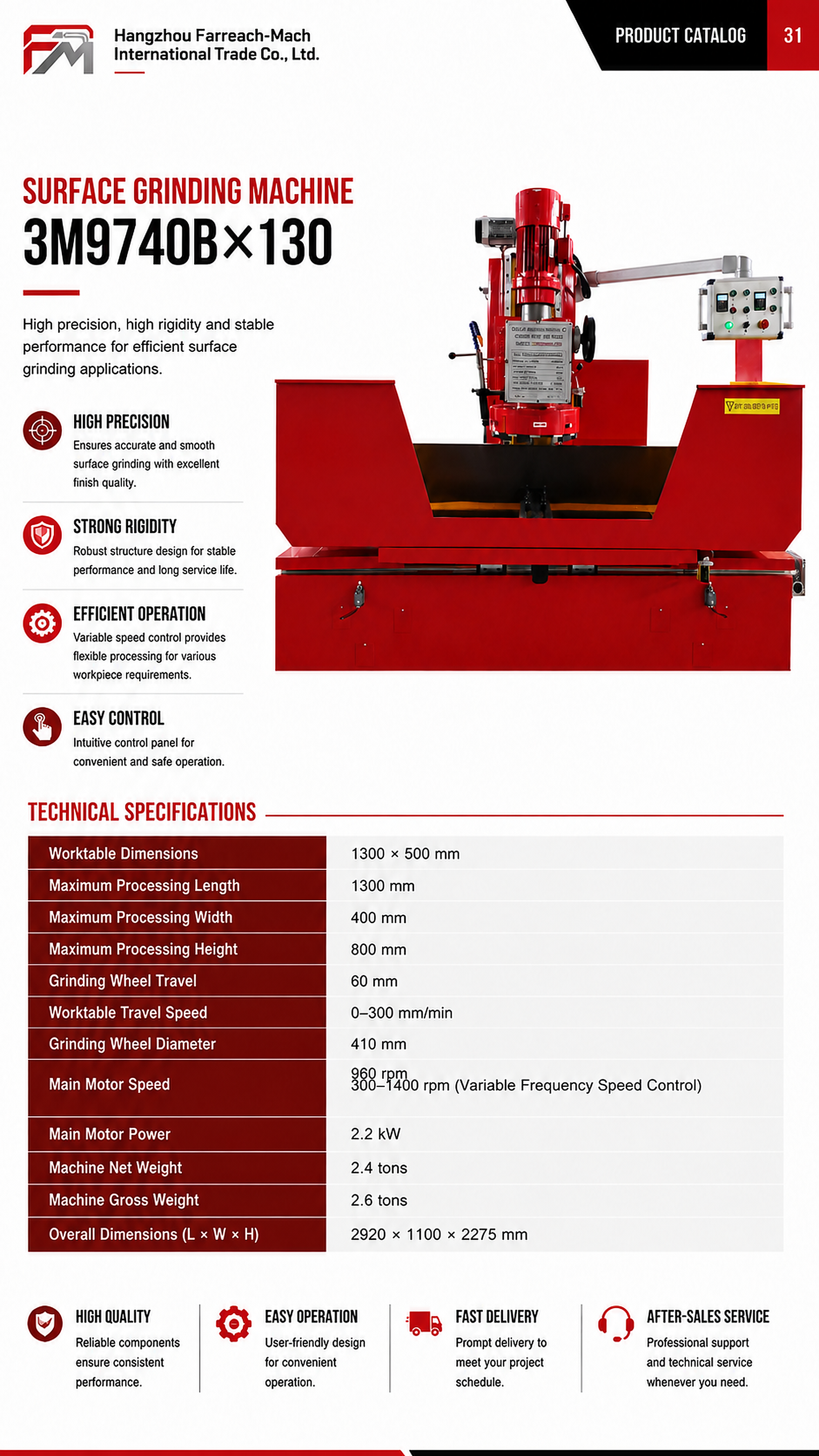

Original source
