Engine Rebuilding
3MB9817
Vertical Hone Machine
High-precision honing machine for cylinder bores, engine rebuilding, hydraulic components and precision parts.
3MB9817
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Honing Bore Diameter Range
35–170 mm
02Maximum Honing Bore Depth
320 mm
03Spindle Speed
120, 160, 225, 290 r/min
04Spindle Reciprocating Speed
35, 44, 60 s/min
05Spindle Horizontal Travel
900 mm
06Worktable Lifting Height
150 mm
07Main Motor Power
1.5 kW
08Voltage
3–380 V
09Frequency
50 Hz
10Cooling Pump Power
0.125 kW
11Cooling Pump Frequency
50 Hz
12Maximum Machine Dimensions (L × W × H)
1640 × 1670 × 1920 mm
13Machine Weight
820 kg

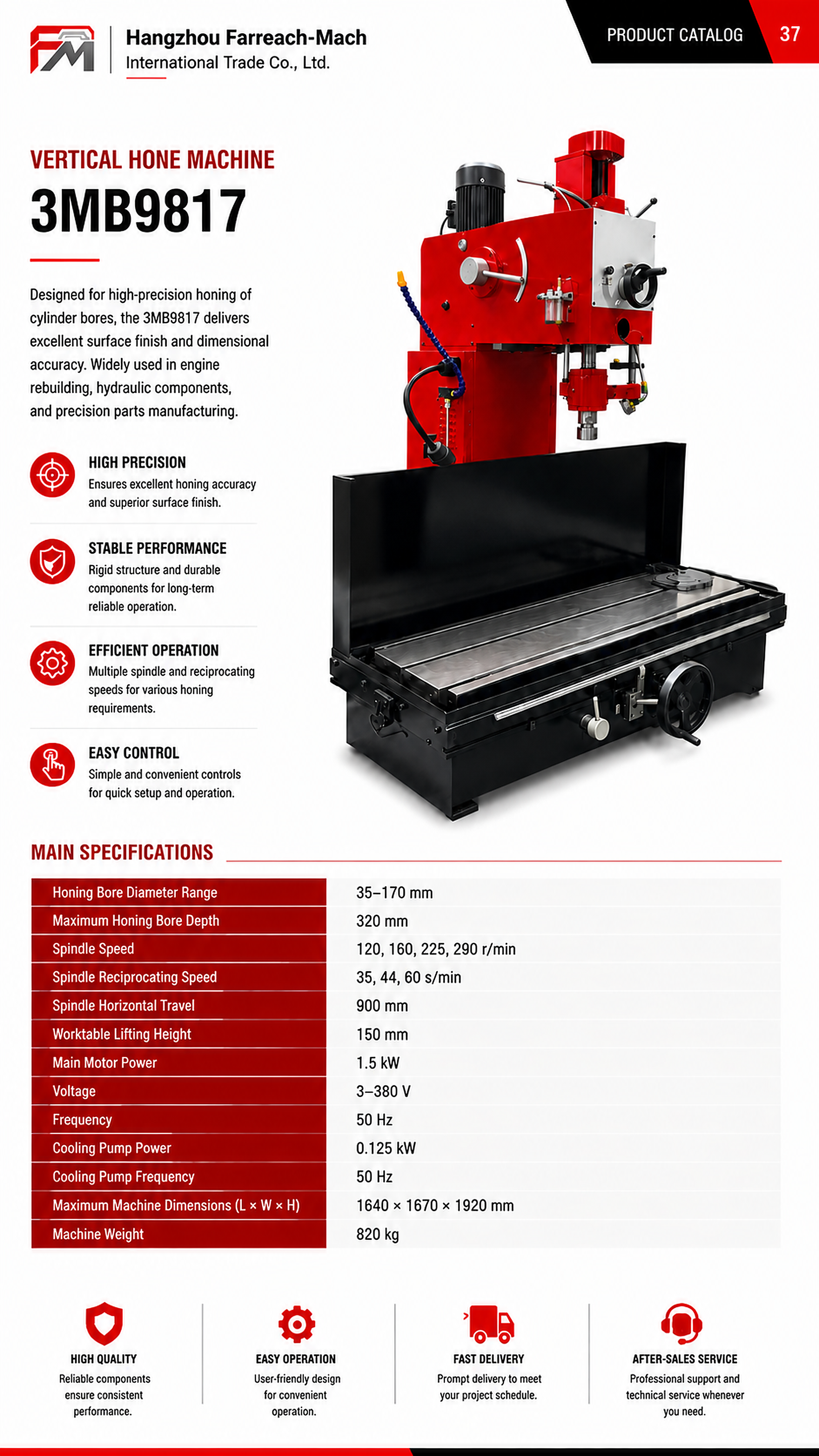

Original source
Catalogue parameter page.
