C9335A
Brake Drum & Disc Lathe
Industrial brake drum & disc lathe configured for reliable workshop production.
C9335A
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Machining Diameter Range (Brake Drum)
180–320 mm
02Machining Diameter Range (Brake Disc)
≤ 350 mm
03Maximum Tool Travel
100 mm
04Spindle Speed
60 / 90 rpm
05Feed Rate
0.15 mm/rev
06Motor Power
0.75 kW
07Power supply
220/380/400/415 V
08Packing Dimensions (L × W × H)
770 × 620 × 820 mm
09Net Weight / Gross Weight
220 / 240 kg

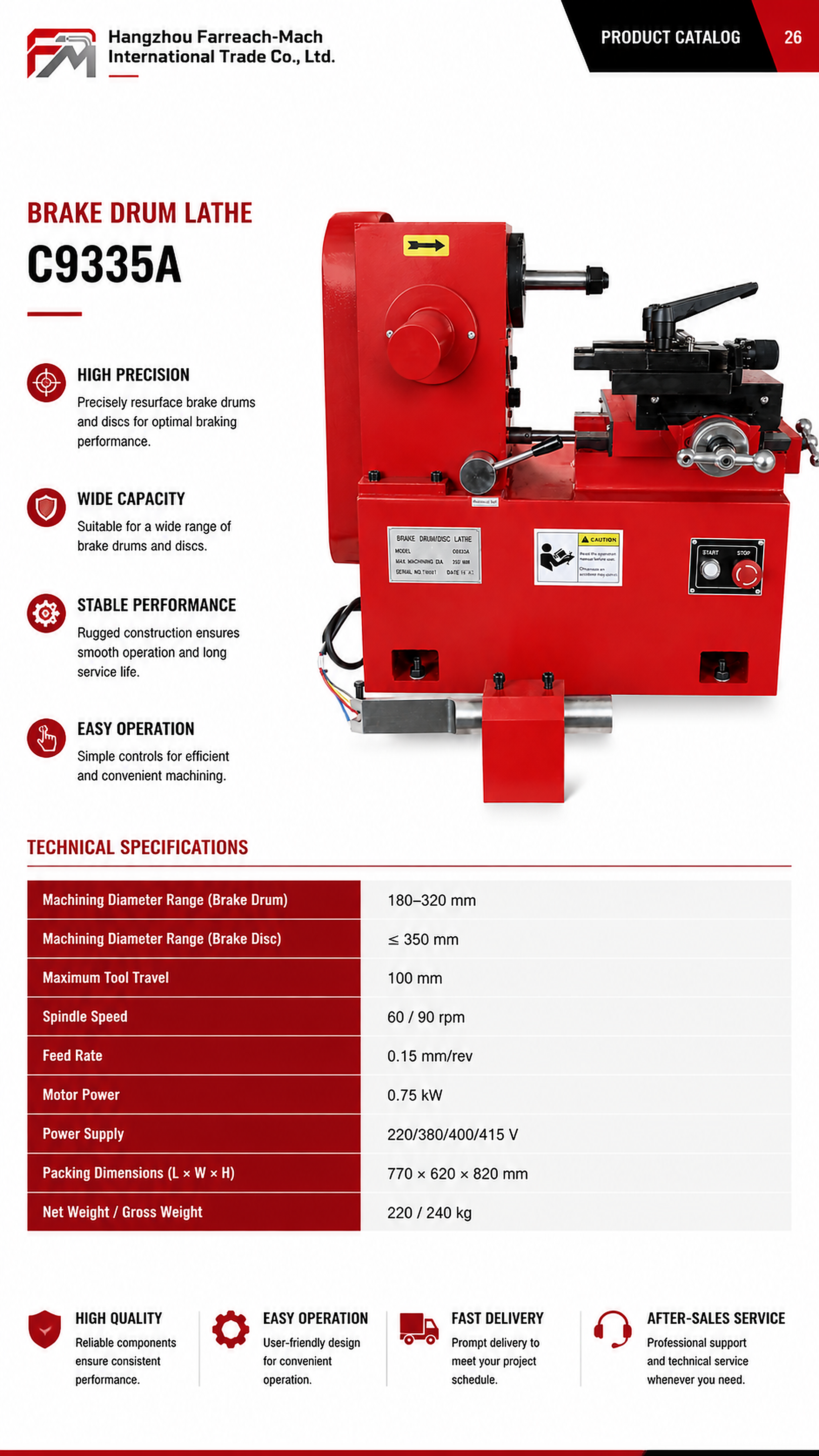

Original source
Catalogue parameter page.
