Brake Service
C9350S
Brake Disc & Drum Lathe
刹车盘(鼓)修复专用车床。 Special-purpose lathe for brake disc (drum) repair. 主轴(工件)旋转采用变频无级调速，方便选择合理转速。 The spindle (workpiece) rotation uses variable fre-quency stepless speed regulation, making it convenientto select a reasonable speed 切削进给无级调速，合理旋选择进给速度。 The cutting feed rate is infinitely variable, andthe feed speed should be reasonably selected 进给采用直线导轨，精度高、运动顺畅、可靠。 The feed system uses linear guides, high preci-sion, smooth motion, and reliability. 可配备进给行程开关控制装置，安全、可靠。(特殊定货) Can be equipped with feed travel switch controldevice for safe and reliable operation. (Specialorder).
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
≤500 mm
≤58 mm
≤145 mm
≤ 350 mm
0–0.5 mm/R
50–110 rpm
0.65 kW
745 x 790 x 1036 mm
290 / 350 kg

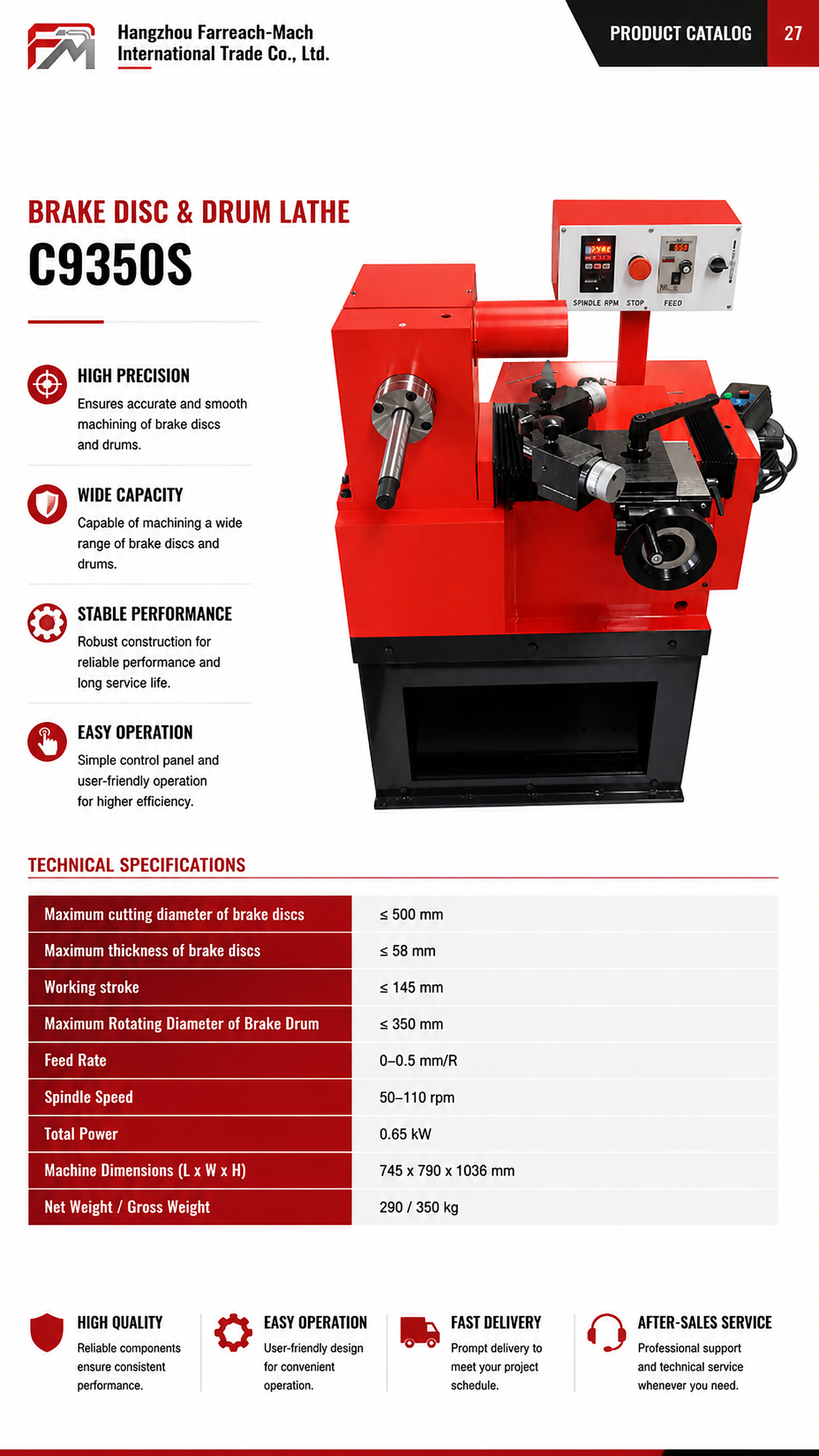

Original source
Catalogue parameter page.
