Industrial machinery engineered for global workshops
Hydraulic Presses
HP-100
Hydraulic Shop Press
Industrial hydraulic shop press configured for reliable workshop production.
HP-100
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Nominal Force (Rated Capacity)
1000 kN
02System Rated Working Pressure
31.5 MPa
03Ram Stroke + Maximum Opening Height
300 + 405 mm
04Table Size
440 × 980 mm
05Power supply
220/380/400/415 V
06Net weight / Gross weight
1150 / 1200 kg
07Packing Dimensions (L × W × H)
1820 × 700 × 2130 mm

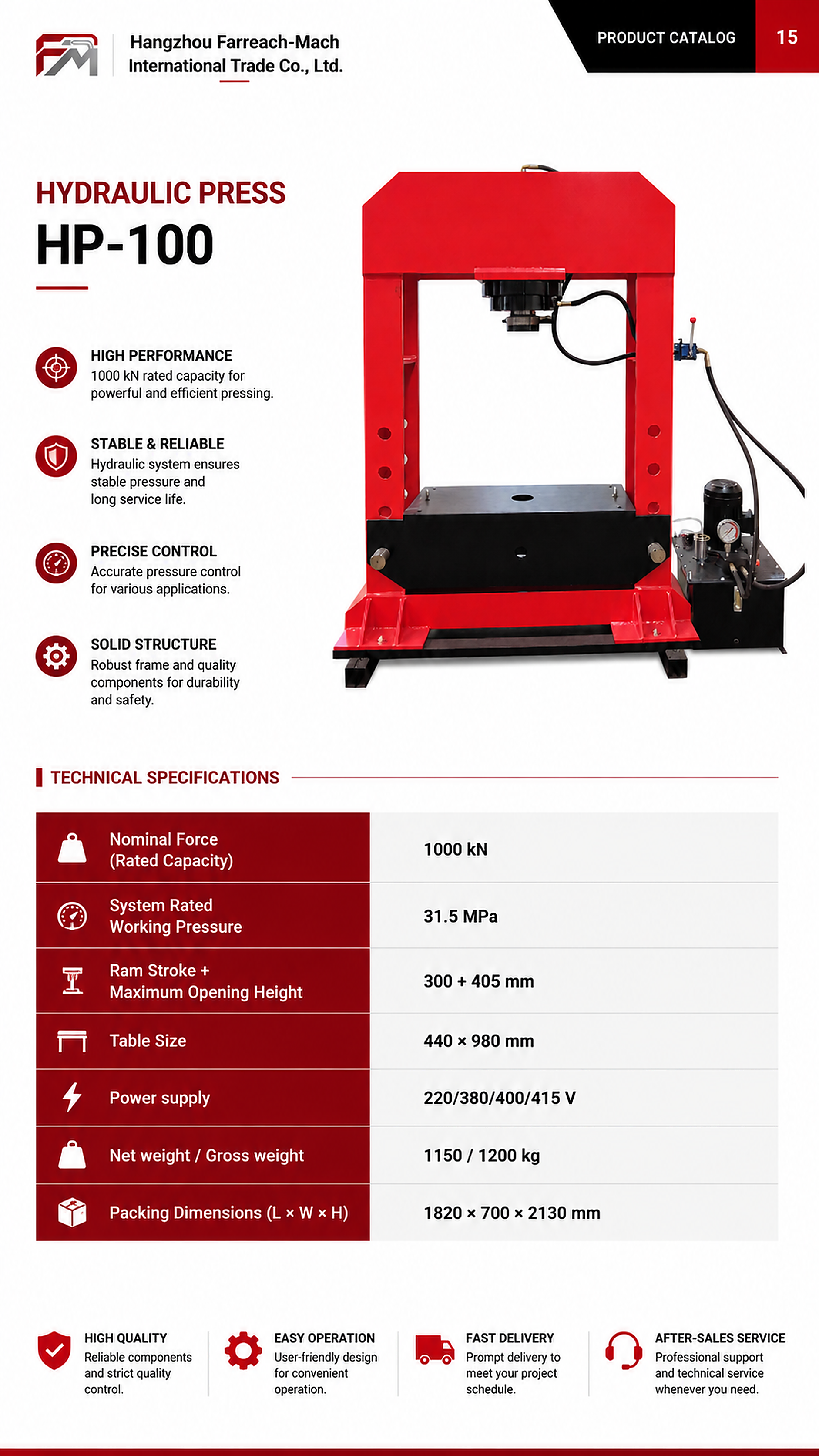

Original source
Catalogue parameter page.
