HP-30
Hydraulic Shop Press
Compact hydraulic shop press for controlled pressing, assembly and maintenance work.
HP-30
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Nominal Pressure / Capacity
300 kN
02System Pressure
25 MPa
03Piston Stroke / Worktable Stroke
200 + 270 mm
04Worktable Dimensions
300 × 400 mm
05Machine Dimensions (L × W × H)
123 × 55 × 168 cm
06Net / Gross Weight
420 / 650 kg

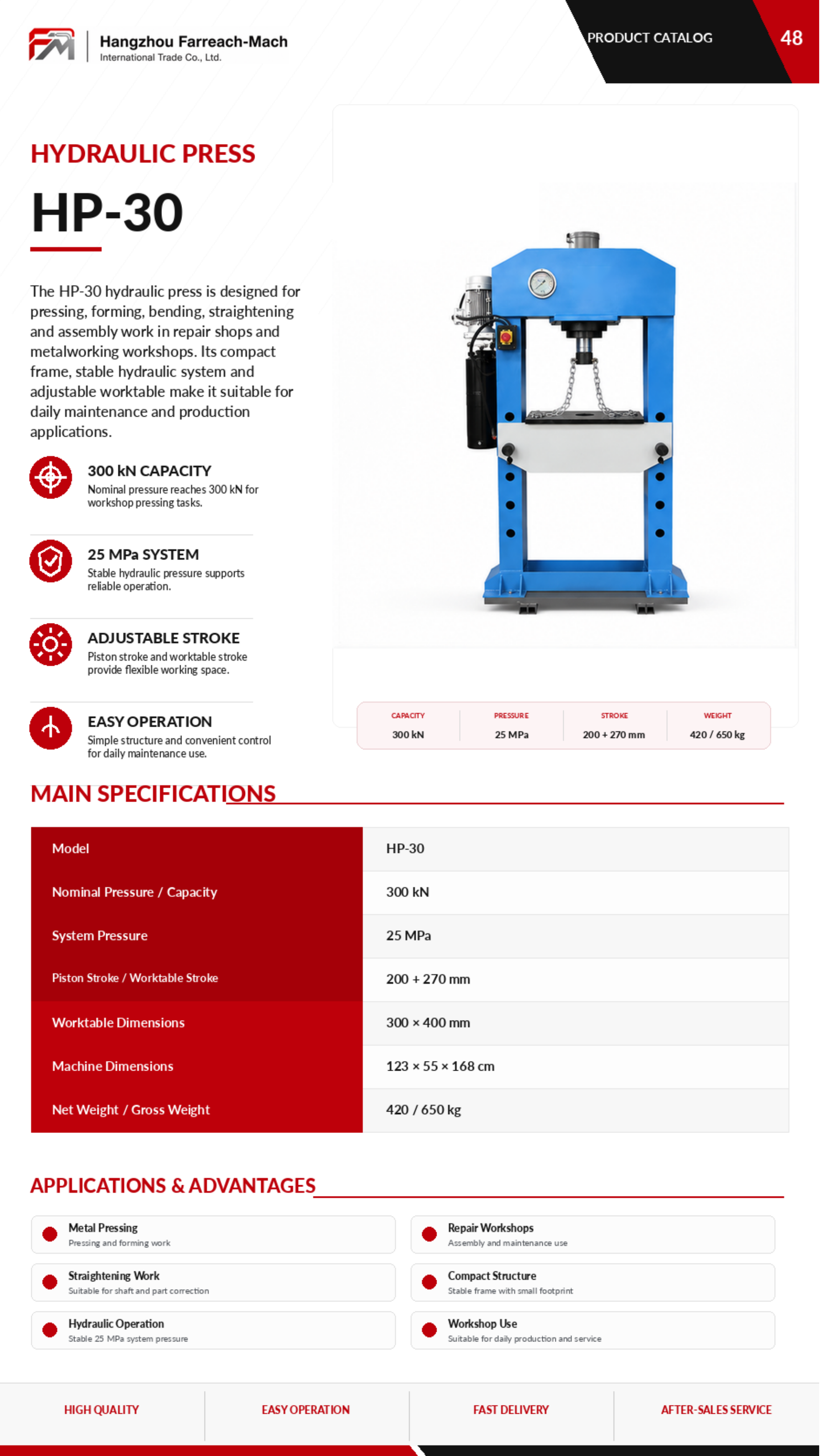

Original source
Catalogue parameter page.
