Hydraulic Presses
HP-63
Hydraulic Shop Press
Industrial hydraulic shop press configured for reliable workshop production.
HP-63
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Nominal Force (Rated Capacity)
630 kN
02System Rated Working Pressure
25 MPa
03Ram Stroke + Maximum Daylight Opening
220 + 405 mm
04Table Size
400 × 500 mm
05Power supply
220/380/400/415 V
06Net weight / Gross weight
720 / 780 kg
07Packing Dimensions (L × W × H)
1350 × 650 × 1950 mm

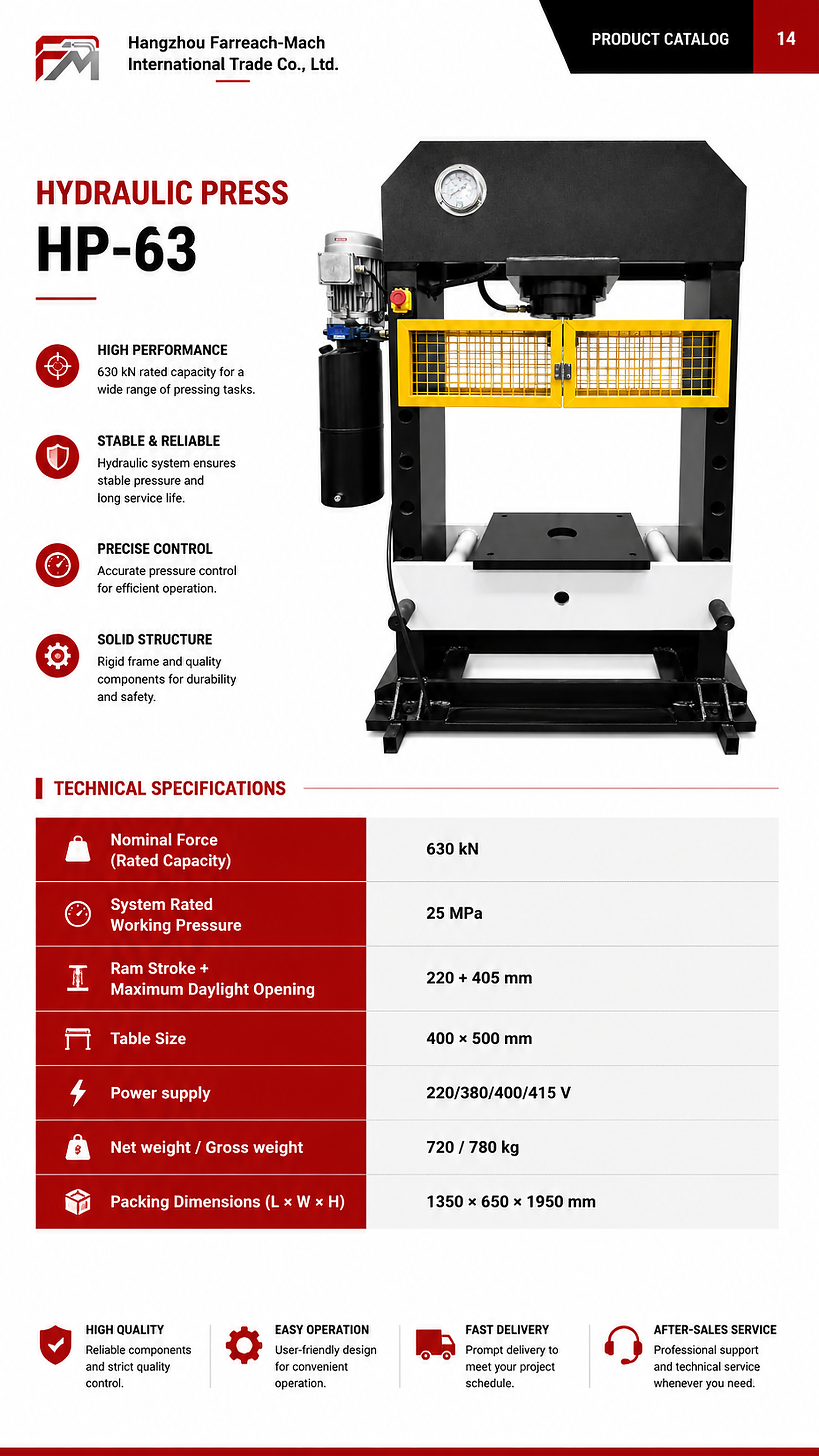

Original source
Catalogue parameter page.
