Industrial machinery engineered for global workshops
Tube Forming
JTB-40
Pipe Bender
Suitable for bending low-carbon steel round tubes, stainless steel round tubes, square tubes, and round steel bars into required shapes. The machine supports both one-touch operation for single workpieces and PLC data-program-controlled batch processing. Easy operation, rational structure, low power consumption, and high working efficiency. Independent movable control pedal for convenient adjustment of roller position and bending angle.
JTB-40
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Applicable Tube Outside Diameter
16–40 mm
02Applicable Tube Wall Thickness
1–3 mm
03Minimum Bending Radius
D × 3/4 mm
04Motor Power
1.5 kW
05Net Weight / Gross Weight
220 / 250 kg
06Packing Dimensions
960 × 610 × 1220 mm

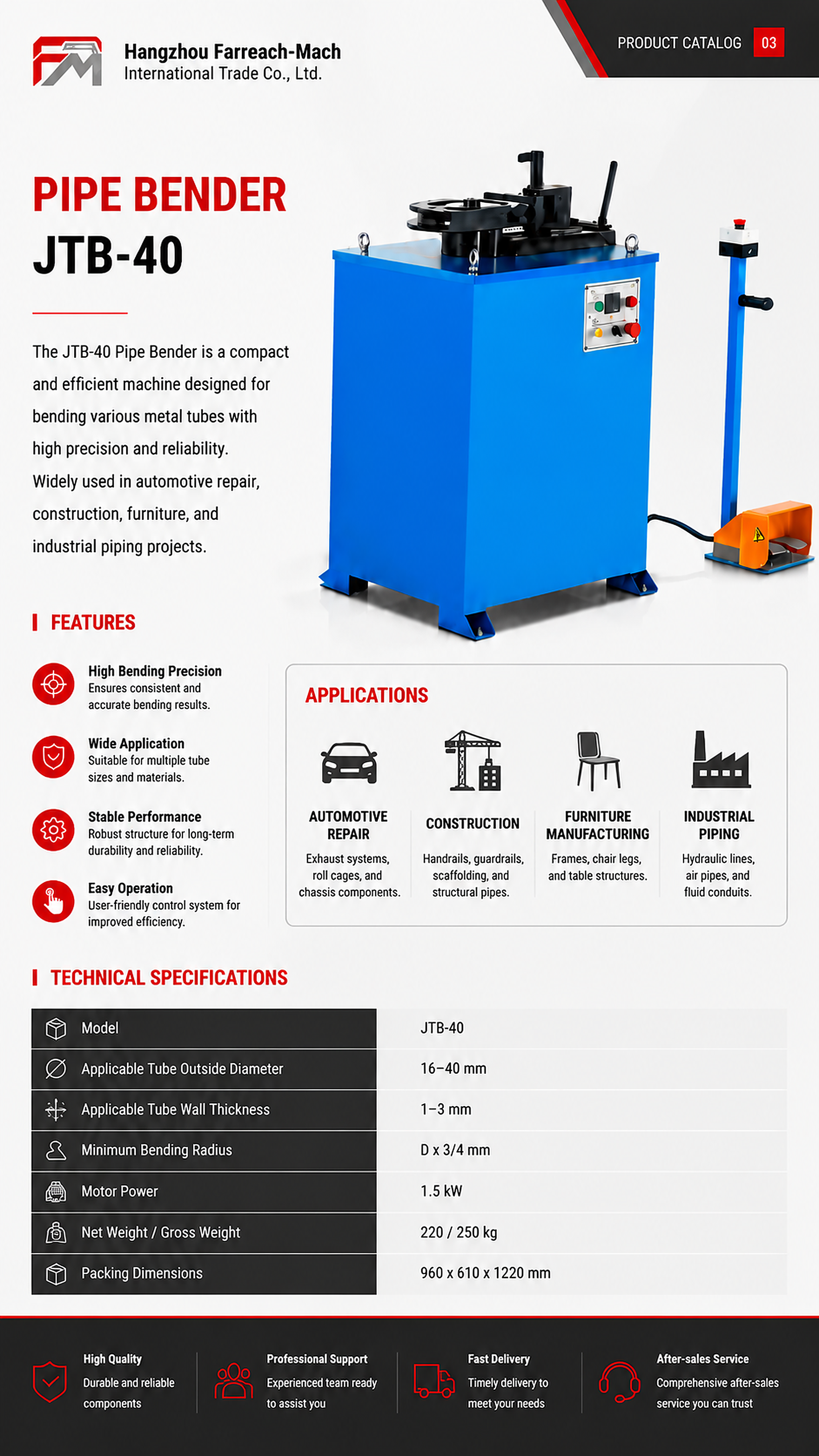

Original source
Catalogue parameter page.
