Tube Forming
JTB-50
Pipe Bender
Suitable for bending low-carbon steel round tubes, stainless steel round tubes, square tubes, and round steel bars into required shapes. The machine supports both one-touch operation for single workpieces and PLC data-program-controlled batch processing. Easy operation, rational structure, low power consumption, and high working efficiency. Independent movable control pedal for convenient adjustment of roller position and bending angle.
JTB-50
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Standard Die Sizes
25 mm, 32 mm, 38 mm, 48 mm
02Applicable Wall Thickness
1–5 mm
03Hydraulic Power Drive with PLC Programmable Control System
04Net Weight / Gross Weight
550 / 620 kg
05Packing Dimensions
1450 × 690 × 1170 mm

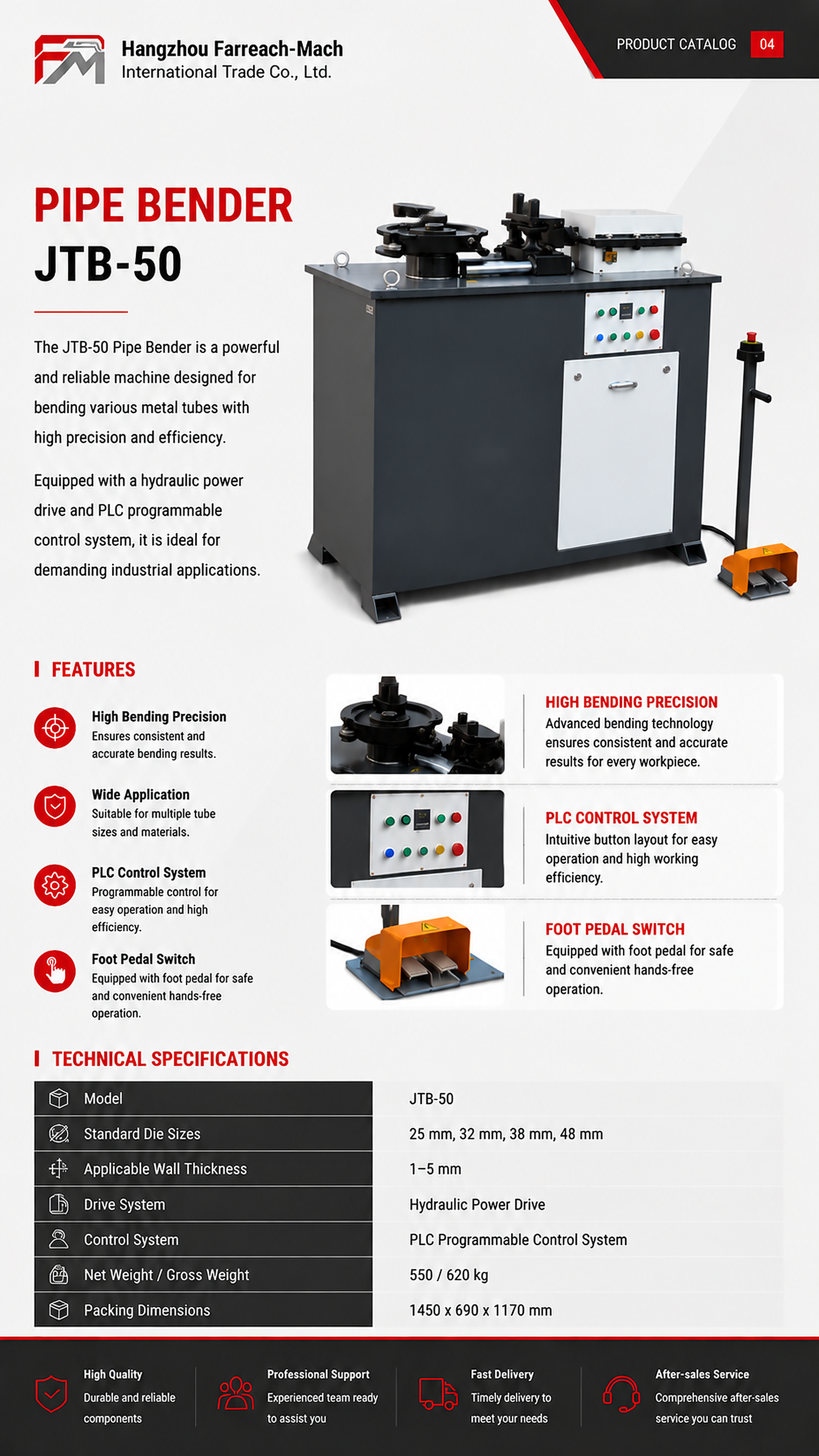

Original source
Catalogue parameter page.
