Tube Forming
JTB-80
Pipe Bender
Suitable for bending low-carbon steel round tubes, stainless steel round tubes, square tubes, and round steel bars into required shapes. The machine supports both one-touch operation for single workpieces and PLC data-program-controlled batch processing. Easy operation, rational structure, low power consumption, and high working efficiency. Independent movable control pedal for convenient adjustment of roller position and bending angle.
JTB-80
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Standard Die Sizes
76 × 265 mm (OD × CLR) / 60 × 210 mm (OD × CLR)
02Applicable Wall Thickness
4–9 mm
03Mak. Bending Angle 180"
04Motor Power 5.5kw
05Net Weight / Gross Weight
1300 / 1400 kg
06Packing Dimensions
1500 × 910 × 1550 mm
07Hydraulic Power Drive with PLC Programmable Control System

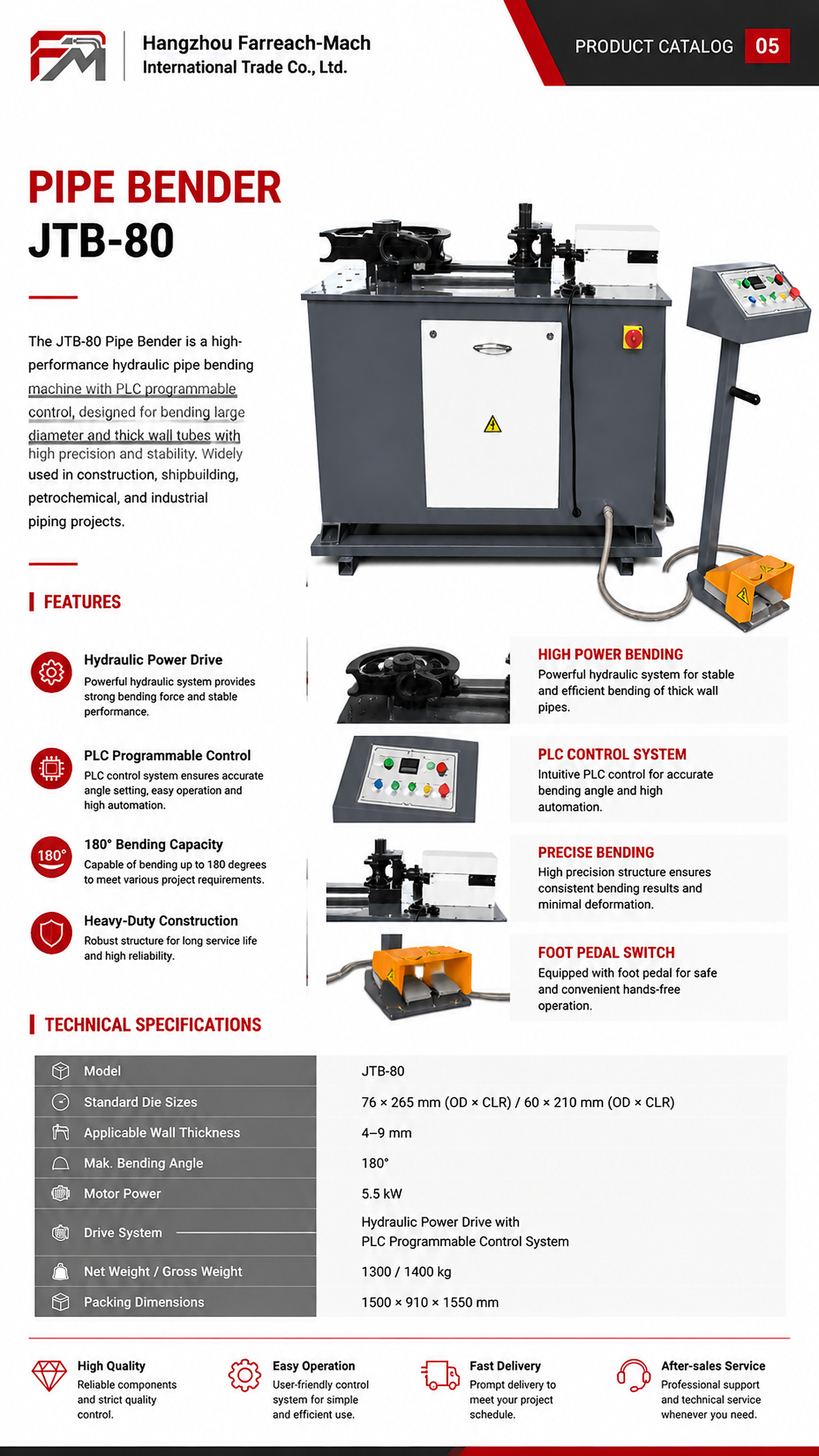

Original source
Catalogue parameter page.
