KL36B-100
Precision Lathe
Industrial precision lathe configured for reliable workshop production.
KL36B-100
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Spindle Center Height
180 mm
02Maximum Distance Between Centers
1000 mm
03Bed Width
220 mm
04Spindle Bore Diameter
38 mm
05Spindle Nose Type
A5
06Spindle Taper
MT5
07Number of Spindle Speeds
9 Steps
08Spindle Speed Range
60–2000 rpm
09Cross Slide Travel
235 mm
10Compound Slide Travel
80 mm
11Lead Screw Pitch
4 mm
12Maximum Tool Shank Size
20 × 16 mm
13Imperial Thread Range
33 Types, 4.75–72 T.P.I.
14Metric Thread Range
20 Types, 0.25–9 mm
15Longitudinal Feed Range (Imperial)
9 Types, 0.0006–0.0925 in/rev
16Longitudinal Feed Range (Metric)
9 Types, 0.015–0.2345 mm/rev
17Cross Feed Range (Imperial)
9 Types, 0.0012–0.185 in/rev
18Cross Feed Range (Metric)
9 Types, 0.03–0.469 mm/rev
19Tailstock Quill Travel
115 mm
20Tailstock Taper
MT3
21Maximum Drilling Diameter
—
22Drilling Spindle Taper
—
23Main Motor Power
2.2 kW
24Packing Dimensions (L × W × H)
1900 × 1140 × 1415 mm
25Net Weight / Gross Weight
755 / 825 kg

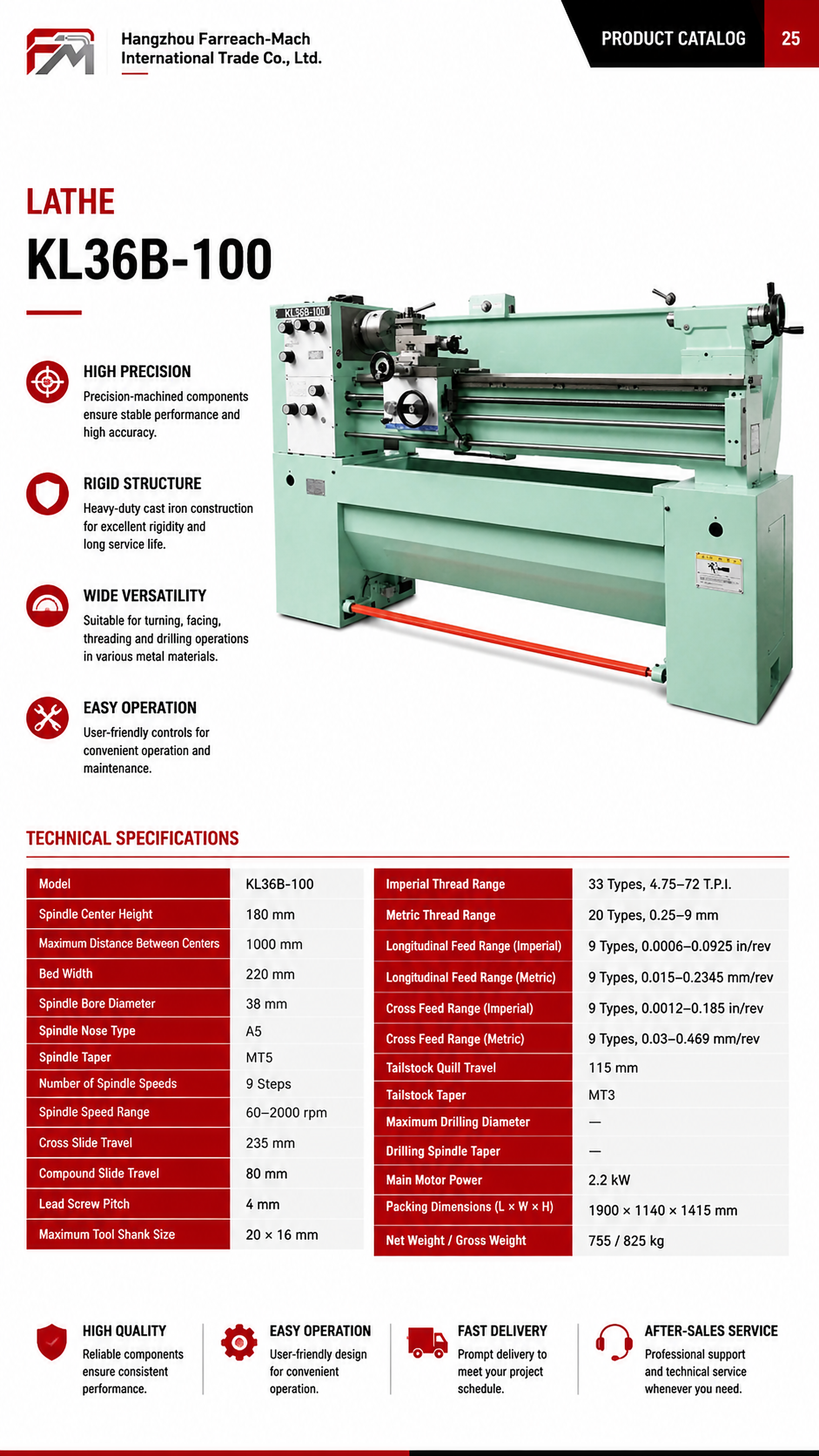

Original source
Catalogue parameter page.
