KL36B-80
Precision Lathe
Industrial precision lathe configured for reliable workshop production.
KL36B-80
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Model
KL36B-80
02Spindle Center Height
180 mm
03Maximum Distance Between Centers
800 mm
04Bed Width
220 mm
05Spindle Bore Diameter
38 mm
06Spindle Nose Type
A5
07Spindle Taper
MT5
08Number of Spindle Speeds
9 Steps
09Spindle Speed Range
60–2000 rpm
10Cross Slide Travel
235 mm
11Compound Slide Travel
80 mm
12Lead Screw Pitch
4 mm
13Maximum Tool Shank Size
20 × 16 mm
14Imperial Thread Range
33 Types, 4.75–72 T.P.I.
15Metric Thread Range
20 Types, 0.25–9 mm
16Longitudinal Feed Range (Imperial)
9 Types, 0.0006–0.0925 in/rev
17Longitudinal Feed Range (Metric)
9 Types, 0.015–0.2345 mm/rev
18Cross Feed Range (Imperial)
9 Types, 0.0012–0.185 in/rev
19Cross Feed Range (Metric)
9 Types, 0.03–0.469 mm/rev
20Tailstock Quill Travel
115 mm
21Tailstock Taper
MT3
22Maximum Drilling Diameter
—
23Drilling Spindle Taper
—
24Main Motor Power
2.2 kW
25Packing Dimensions (L × W × H)
1700 × 1140 × 1415 mm
26Net Weight / Gross Weight
730 / 800 kg

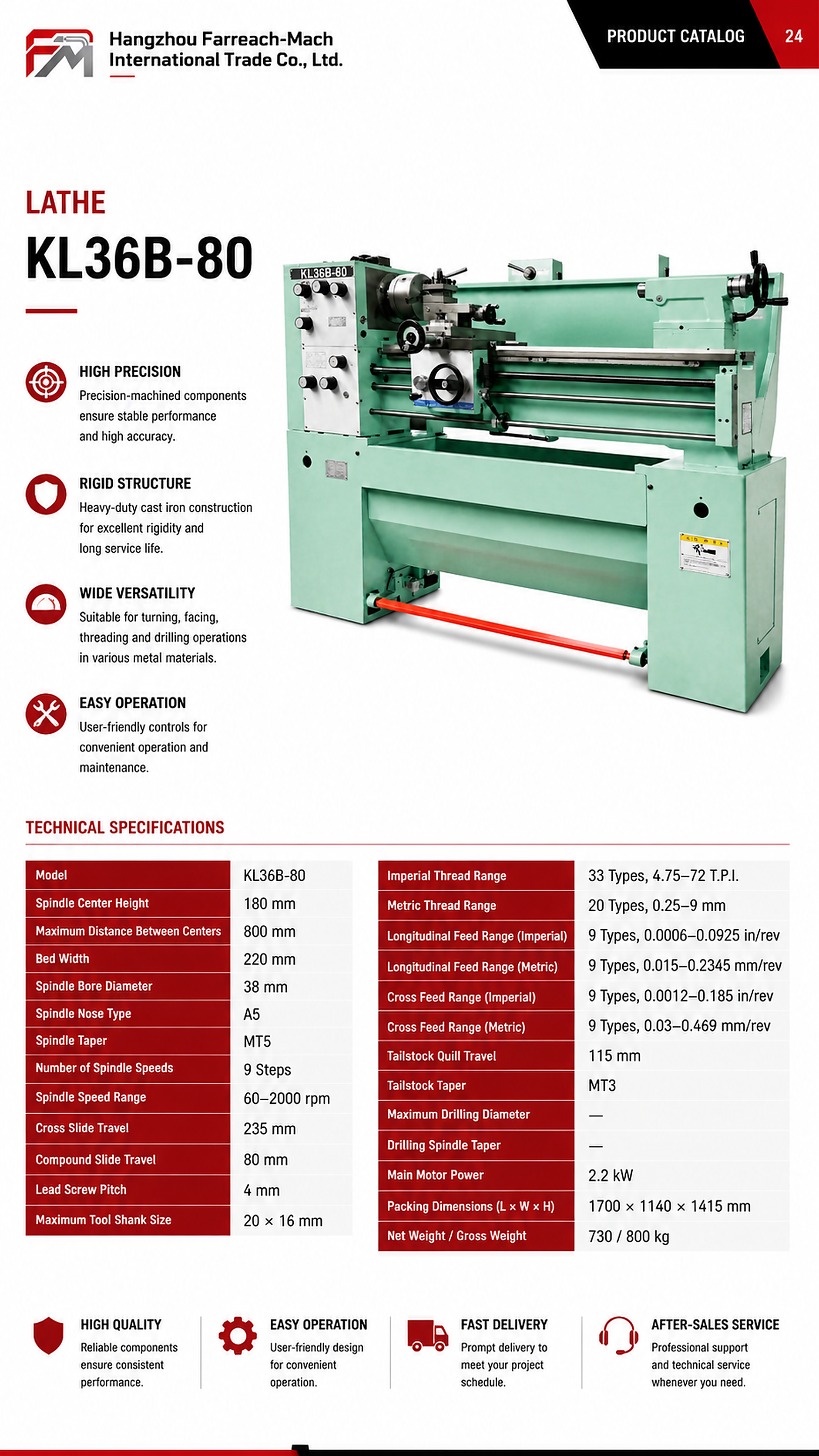

Original source
Catalogue parameter page.
