Industrial machinery engineered for global workshops
Engine Rebuilding
KSM1200
Cylinder Block & Head Milling Machine
Industrial cylinder block & head milling machine configured for reliable workshop production.
KSM1200
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Table Length
1450 mm
02Maximum Workpiece Length
1200 mm
03Maximum Workpiece Width
400 mm
04Workpiece Height
235–530 mm
05Cutter Head Diameter
400 mm
06Rotational Speed
300–1350
07Table Travel Speed
20–600 mm/min
08Worktable Motor
1.5 kW
09Spindle Motor
2.2 kW
10Machine Dimensions
2800 × 1200 × 1950 mm
11Machine Net Weight
1800 kg

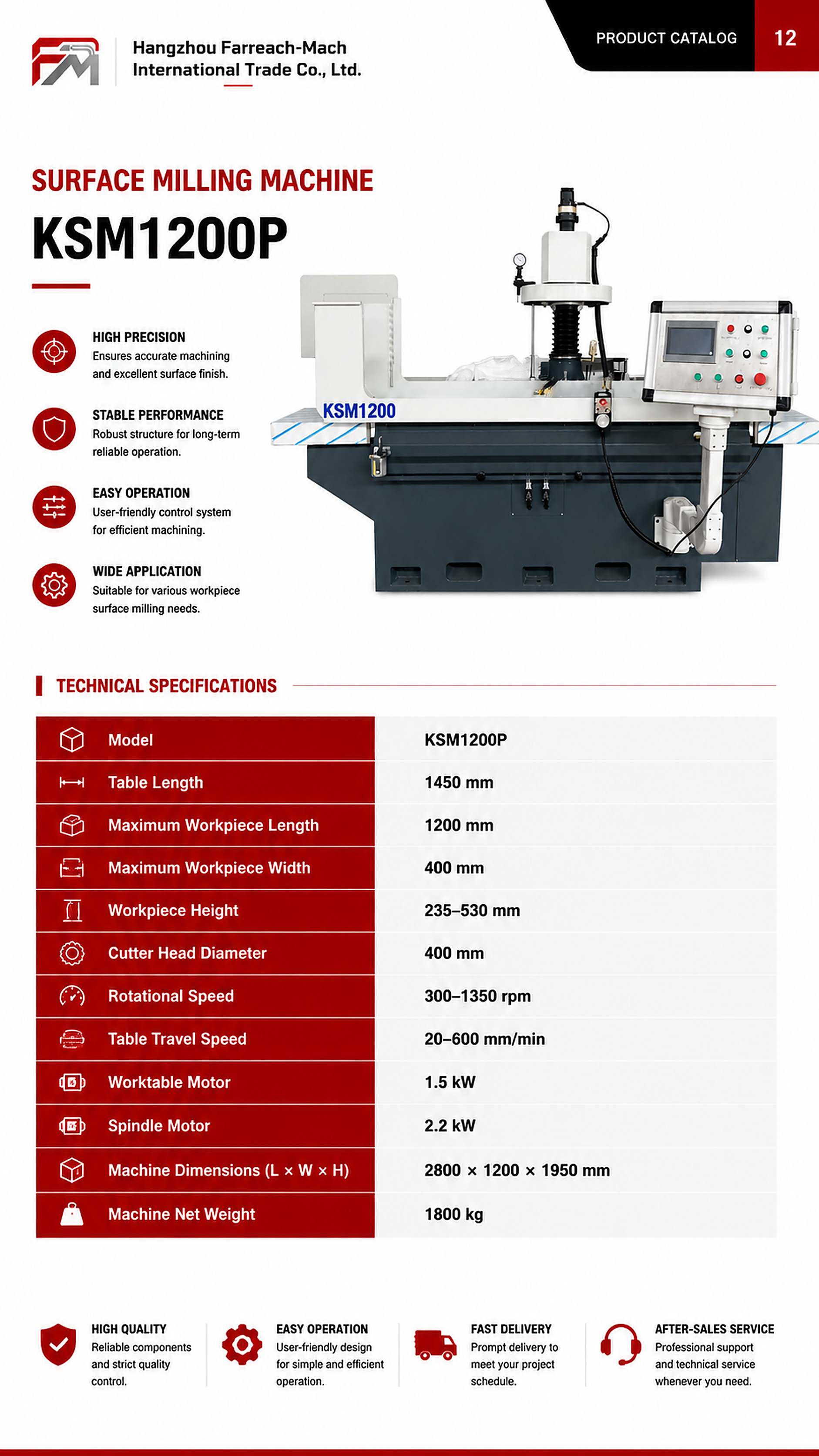

Original source
Catalogue parameter page.
