Engine Rebuilding
KSM850
Cylinder Block & Head Milling Machine
Industrial cylinder block & head milling machine configured for reliable workshop production.
KSM850
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Table Travel
1115 mm
02Maximum Workpiece Length
850 mm
03Maximum Workpiece Width
330 mm
04Workpiece Height Range
160–440 mm
05Milling Wheel Diameter
330 mm
06Variable Head Rotation Speed
300–1200 rpm
07Variable Table Travel Speed
0–600 mm/min
08Head Motor Power
1.5 kW
09Table Motor Power
0.75 kW
10Overall Dimensions
1630 × 1100 × 1680 mm
11Net weight / Gross weight
850 / 1000 kg

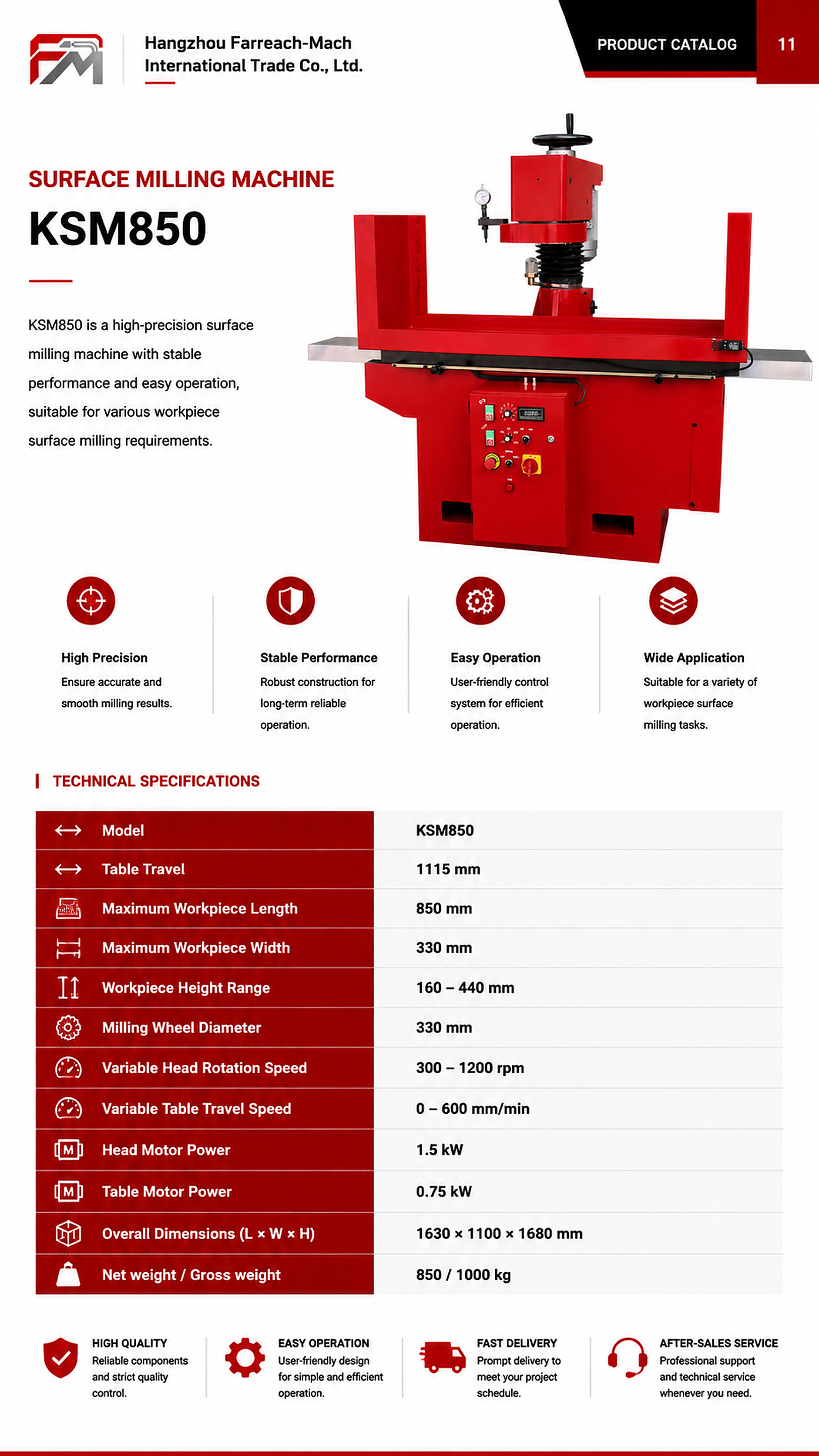

Original source
Catalogue parameter page.
