LD100A
Valve Refacer Grinder
Compact valve refacer grinder for accurate one-off and small-batch engine valve reconditioning.
LD100A
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Valve Stem Diameter (Min–Max)
3.5–20 mm / 0.16–0.55 in
02Valve Head Diameter (Min–Max)
12–100 mm / 0.47–4 in
03Valve Length (Min–Max)
70–450 mm / 2.76–17.7 in
04Grinding Angle Range
10–57°
05Main Wheel Diameter
200 mm / 7.87 in
06Cup Wheel Diameter
100 mm / 3.94 in
07Main Wheel Width
15 mm / 0.59 in
08Grinding Wheel Travel
90 mm / 3.54 in
09Valve Feed Travel
90 mm / 3.54 in
10Spindle Motor Power
750 W
11Spindle Motor Speed
3600 rpm
12Valve Driving Motor Power
180 W
13Valve Driving Motor Speed
120–750 rpm
14Coolant Motor Power
100 W
15Power Supply
380 V / 50 Hz / 3 Ph or 220 V / 60 Hz /
16Maximum Air Supply
6 bar / 87 psi
17Coolant Tank
46 L / 11.3 US gal
18Space Requirements (L × W × H)
1050 × 1000 × 730 mm / 41.3 × 39.4 × 28.7 in
19Approximate Net Weight
215 kg / 474 lb

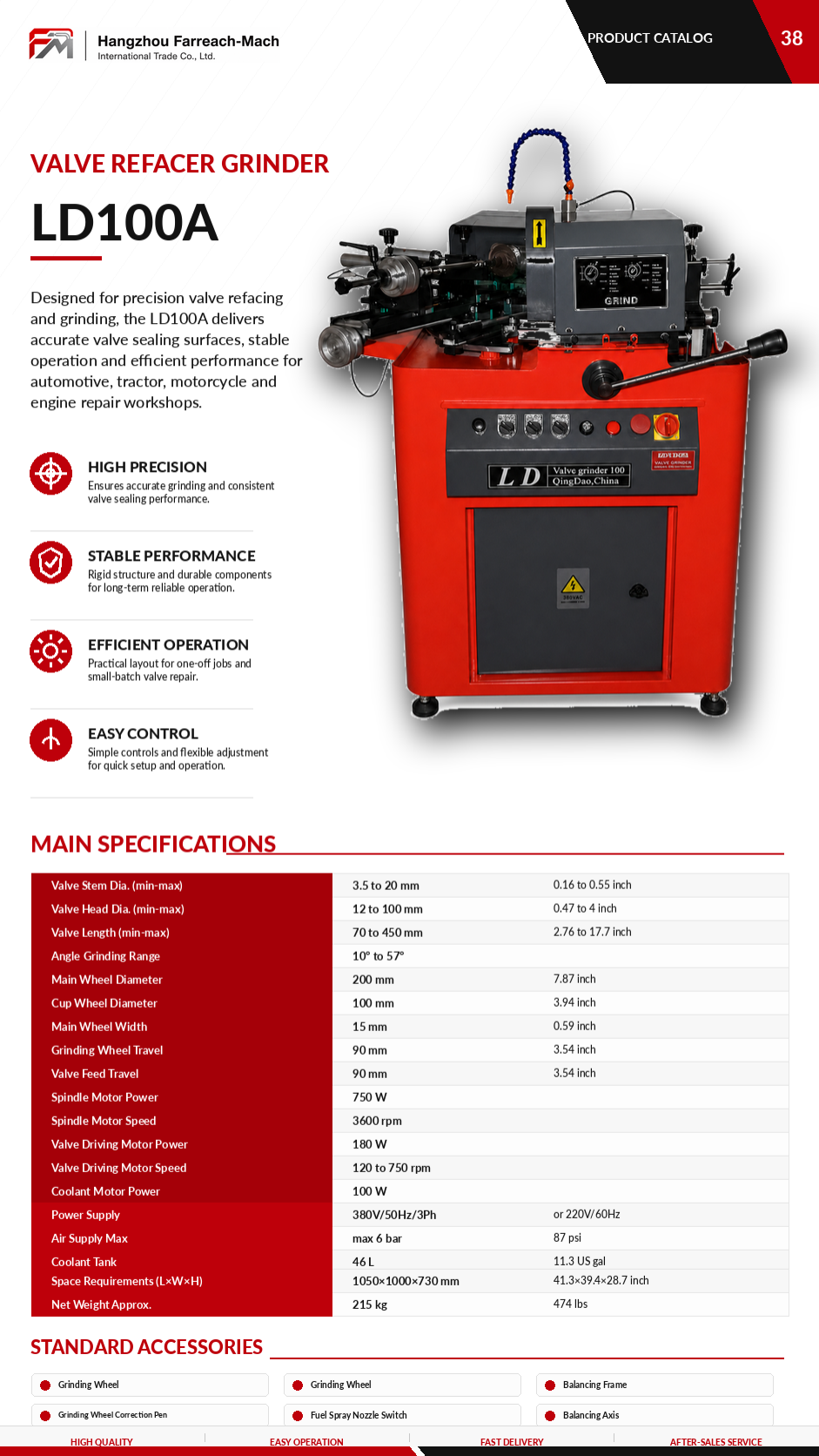

Original source
Catalogue parameter page.
