LD180C
Valve Seat Boring Machine
Valve seat boring machine with an air-floating worktable for accurate cylinder-head reconditioning.
LD180C
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Maximum Cylinder Head Length
Unrestricted
02Maximum Cylinder Head Width
500 mm / 19.7 in
03Maximum Cylinder Head Height
450 mm / 18.7 in
04Crosswise Workpiece Tilting
+45° to −15°
05Machining Capacity Diameter (Min–Max)
14–120 mm / 0.6–4.7 in
06Longitudinal Travel
1230 mm / 48.4 in
07Crosswise Travel
40 mm / 1.6 in
08Sphere-Cylinder Travel
9 mm / 0.4 in
09Spindle Motor Power
2200 W
10Spindle Rotation Speed
20–1000 rpm
11Spindle Travel
200 mm / 8.5 in
12Maximum Spindle Inclination
5.5°
13Electric Supply
380 V / 50 Hz / 3 Ph or 220 V / 60 Hz / 3 Ph
14Air Pressure
6 bar / 87 psi
15Maximum Air Flow
300 L/min / 11 CFM
16Noise Level at 400 rpm
65 dBA
17Noise Level at 1200 rpm
82 dBA
18Approximate Net Weight
1950 kg / 4299 lb
19Machine Space Requirements (L × W × H)
2130 × 1150 × 2200 mm / 83.8 × 45.3 × 86.6 in

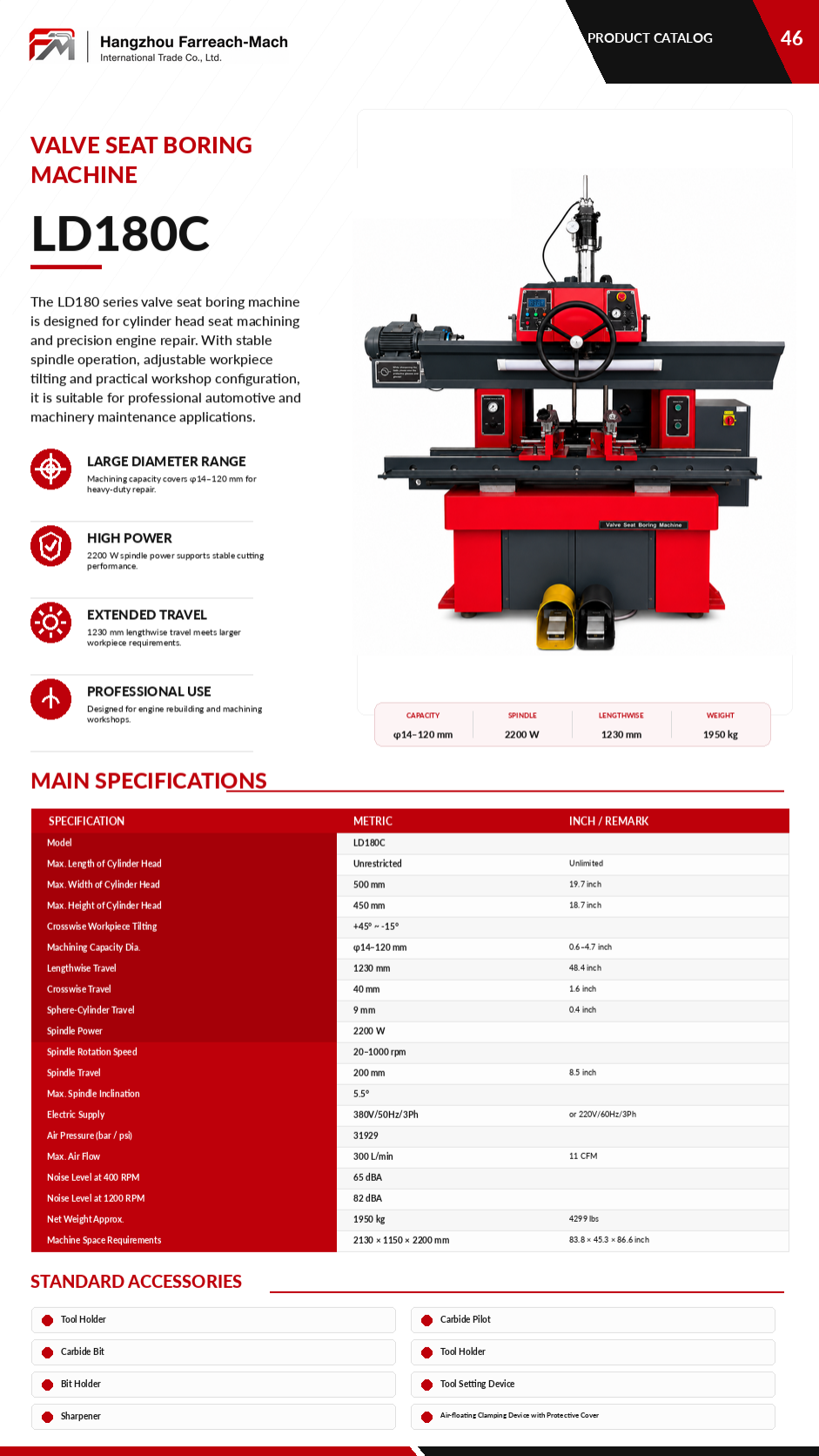

Original source
Catalogue parameter page.
