Engine Rebuilding
PT1600L
Cylinder Head Pressure Tester
Industrial cylinder head pressure tester configured for reliable workshop production.
PT1600L
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Maximum processing length
1300 mm
02Maximum processing width
400 mm
03Maximum processing height
300 mm
04Tank capacity
500 liters
05Heating power
2 × 4.5 kW
06Drum motor power
0.37 kW
07Hydraulic motor power
1.5 kW
08Overall dimensions
2000 × 1100 × 1800 mm
09Net weight / Gross weight
700 / 850 kg

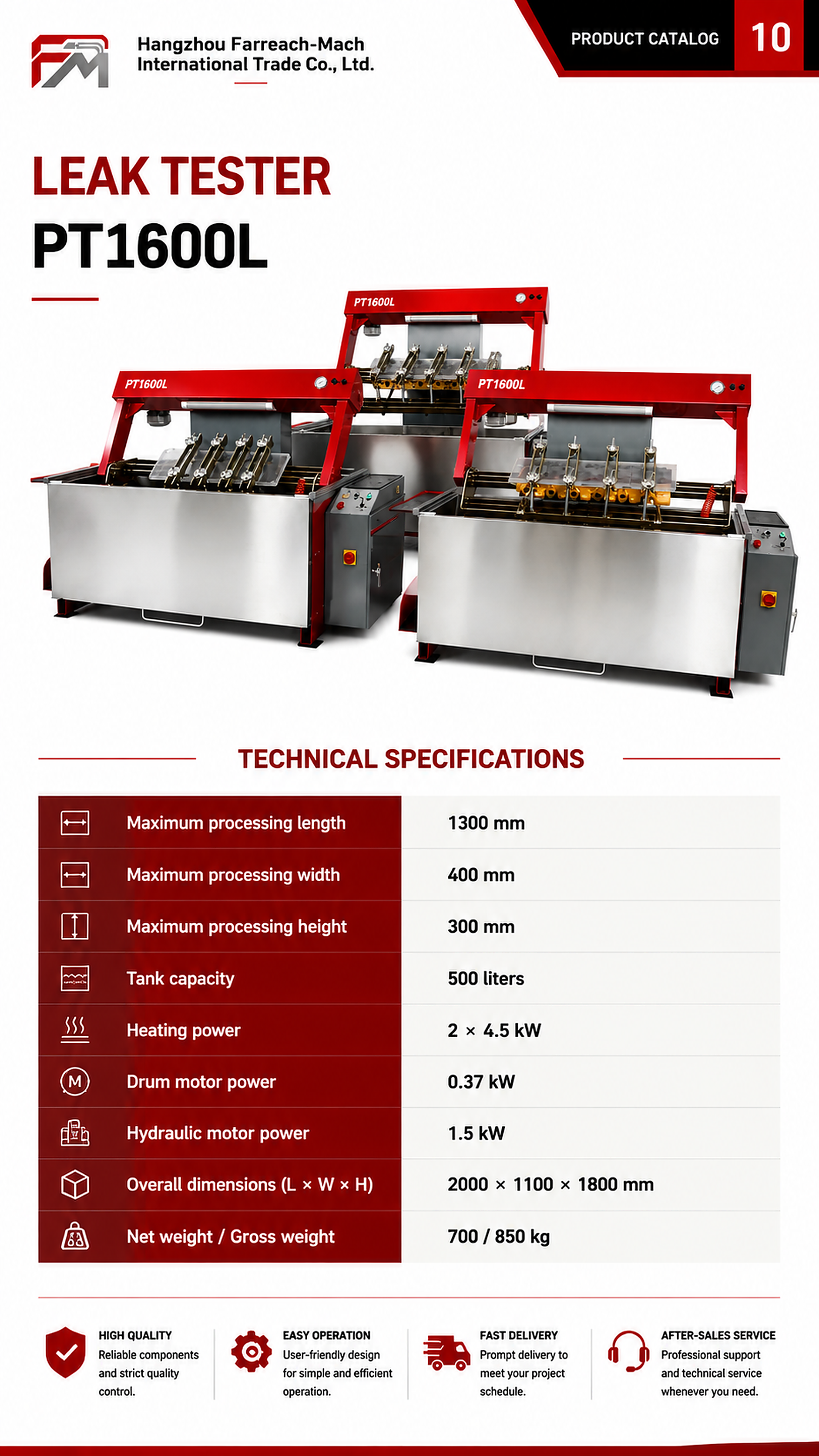

Original source
Catalogue parameter page.
