Tube Forming
RBM30
Electric Roll Forming Machine
Industrial electric roll forming machine configured for reliable workshop production.
RBM30
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Model
RBM30
02Dia. of roller
30mm
03Power
1.1kW/1.5HP
04Spindle speed
9r/min
05Packing size
93x62x150cm
06N.W./G.W.213/248kg
07Capacity；Size；Min dia.(mm)；Article No.
08Φ20x1；500；391001-01
09Φ30x1；800；391001-02
10Φ16；400；391001-01
1120x20x1；800；391001-03
1230x30x1；900；391001-04
1320x10；320；391001-05
1430x10；320；391001-05

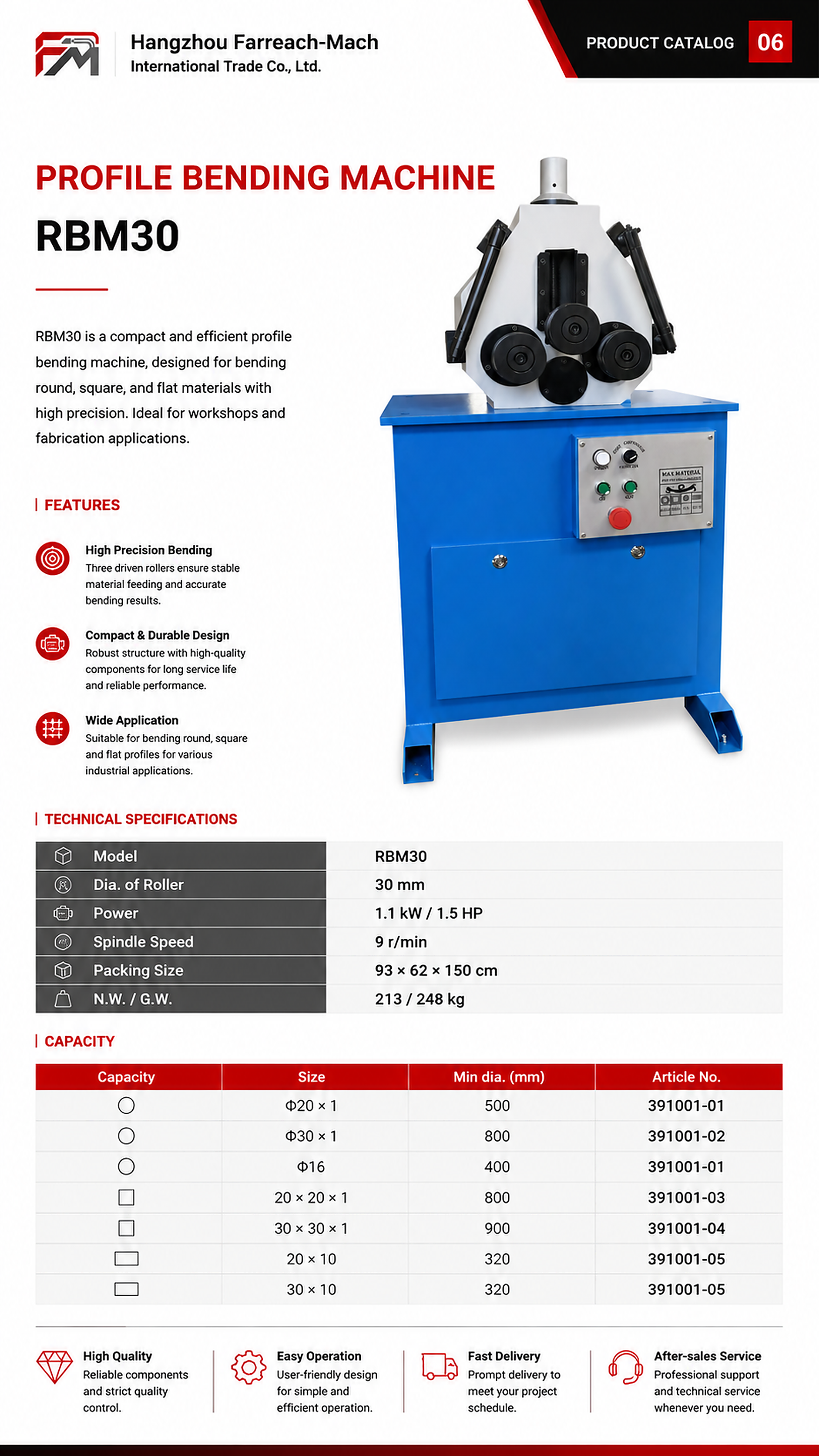

Original source
Catalogue parameter page.
