RBM30HV

Electric Roll Forming Machine

All the above processing capacities can be finished by one set ofcombination roller

RBM30HV

Verified technical data

Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.

01Model

RBM3OHV

02Dia. of roller

30mm

03Power

0.75kW/1HP

04Spindle speed

9r/min

05Packing size

116x75x127cm

06N.W./G.W.

224/282kg

07Capacity；Size (mm)；Min dia.(mm)；Article No.

0840x40x3；1000；HV30-15-1

0950x15；350；HV30-15-2

1050x30x3；1200；HV30-15-3

11Φ15 Φ20 Φ25 Φ30；600；HV30-15-4

1240x40x2，40x40x3，40x40x4，40x40x5；400；HV30-15-5

1340x40x2，40x40x3，40x40x4，40x40x5；400；HV30-15-6

1450x50x2，50x50x3，50x50x4，50x20x5；400；HV30-15-7

1550x50x2，50x50x3，50x50x4，50x20x5；300；HV30-15-8

1650x25x2，50x25x3，50x25x4，50x25x5；400；HV30-15-9

1750x25x2，50x25x3，50x25x4，50x25x5；300；HV30-15-10

18Φ35x2，Φ40x2，Φ45x2，Φ50x2，Φ55x2，Φ60x2；1000；Special rollerHV30-15-11

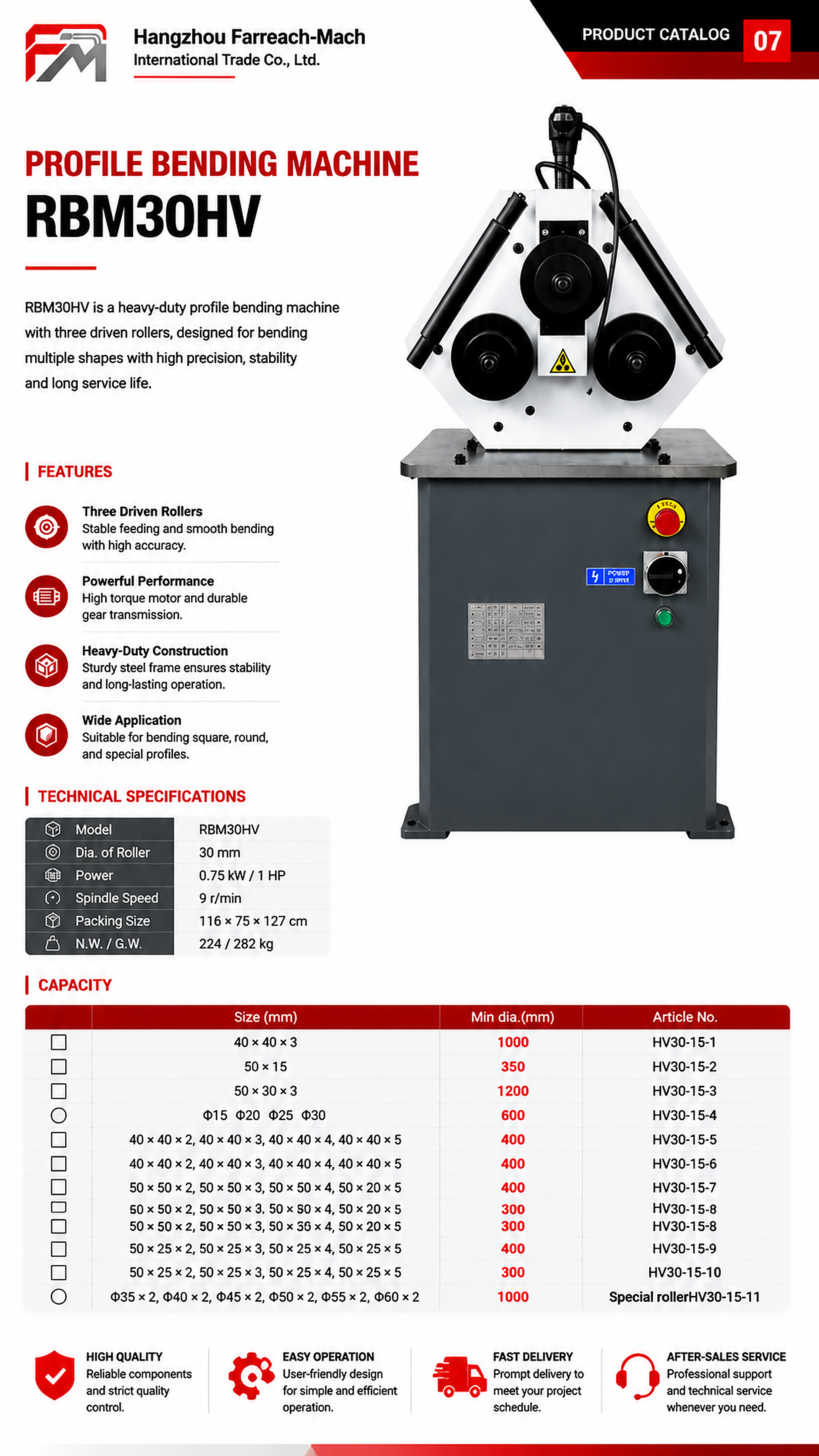

Original source
