Tube Forming
RBM50HV
Electric Roll Forming Machine
Industrial electric roll forming machine configured for reliable workshop production.
RBM50HV
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Model
RBM50HV
02Roller Diameter
50 mm
03Power
2.2 kW / 1 HP
04Spindle Speed
13 r/min
05Packaging Dimensions
150x95x134 cm
06Net Weight/Gross Weight
520/650 kg
07Dimensions (mm); Minimum Diameter (mm)
0860x10; 500
0940x10; 650
10100x15; 920
1160x10; 1150
1235x35; 600
1320x20; 780
1460x7; 750
1550x5; 700
1660x7; 760
1750x5; 700
1880x45x6; 600
1965x40x5; 550
2080x45x6; 650
2105x40x5; 550
2260x5;500
2350x5;500
2460x5;700
2550x5;700
26435;600
27230;650
2860x60x3;600
2940x40x3;500
3070x50x3;1200
3150x40x3;800

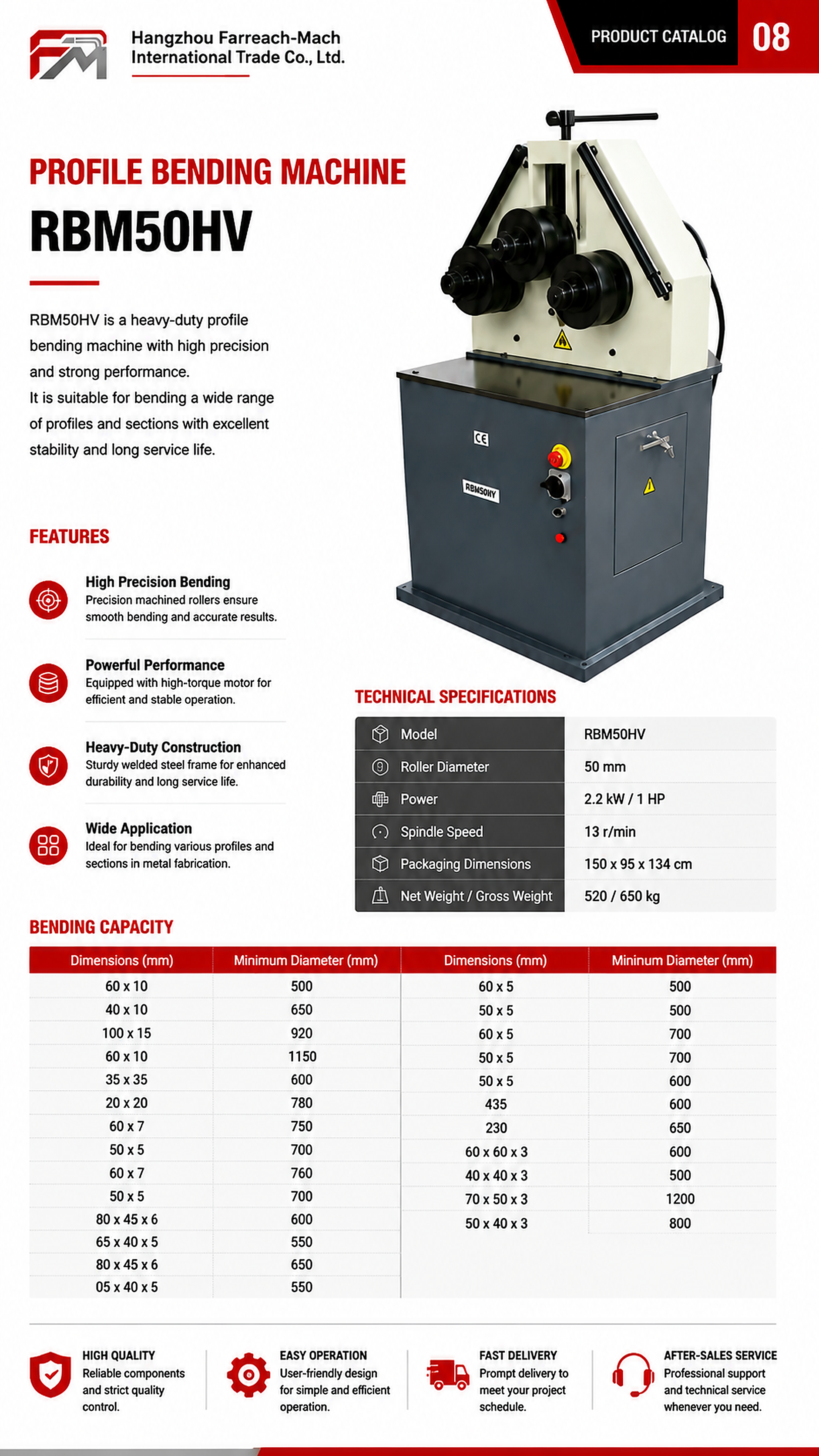

Original source
Catalogue parameter page.
