Industrial machinery engineered for global workshops
Tube Forming
RBM65HV
Electric Roll Forming Machine
Industrial electric roll forming machine configured for reliable workshop production.
RBM65HV
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Model
RBM65HV
02Roller Diameter
60 mm
03Power
2.25 kW / 1 HP
04Spindle Speed
9.3 r/min
05Packaging Dimensions
125x115x180 cm
06Net Weight/Gross Weight
760/920 kg
07Dimensions (mm); Minimum Diameter (mm)
0880x25; 600
0940x10; 500
10120x25; 600
1150x10; 400
1250; 600
1320; 400
1480x40x7; 500
1540x40x5; 400
1680x40x7; 400
1740x40x5; 360
18100x50x6; 600
1950x40x5; 500
20100x50x6; 600
2150x40x5; 500
2270x6; 500
2340x5; 400
2470x6; 600
2540x5; 500
26450; 600
27C20; 400
2870x70x3; 900
2930x30x3; 500
3080x40x3; 800
3150x30x2; 500

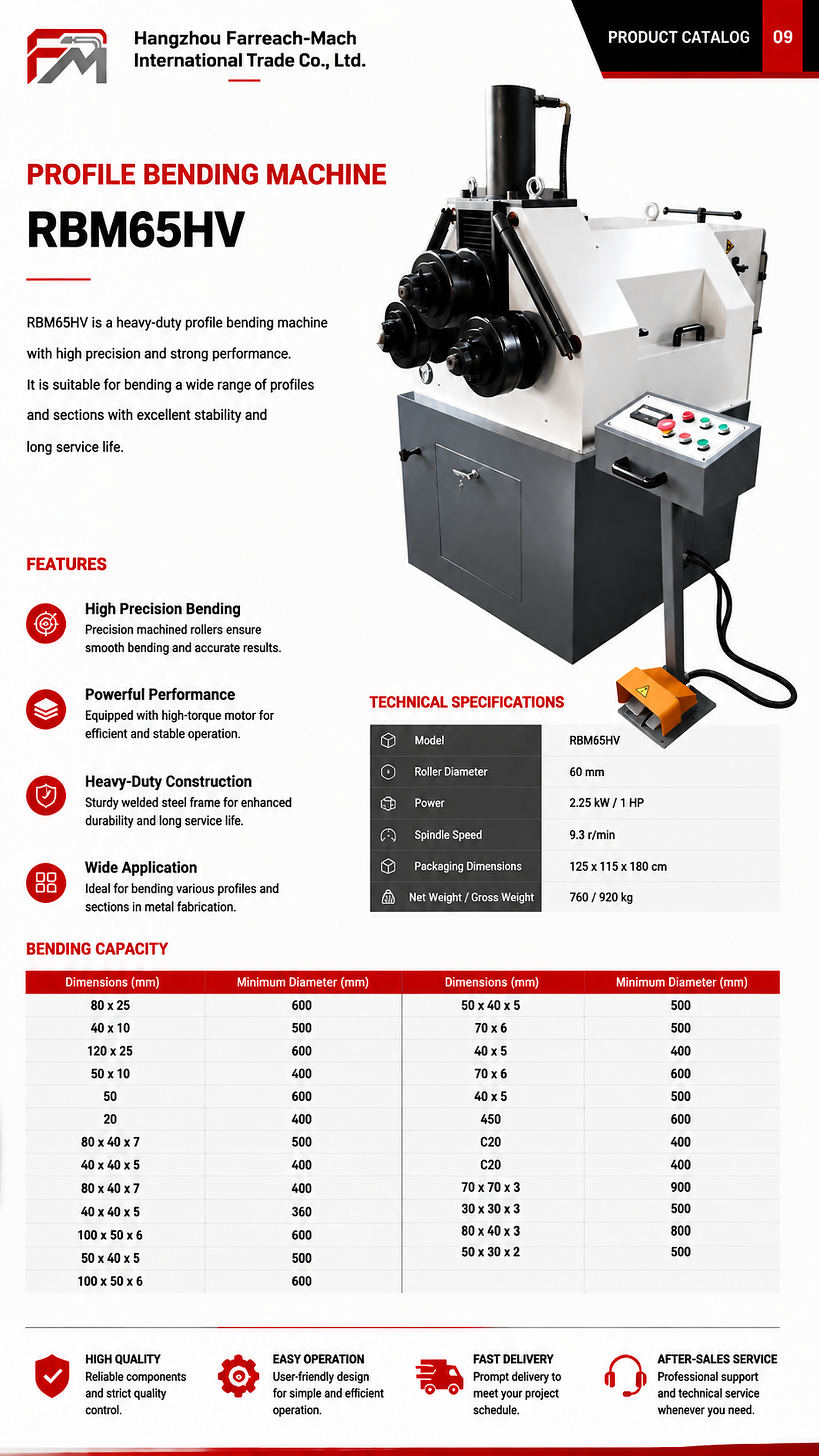

Original source
Catalogue parameter page.
