T8014A
Cylinder Boring Machine
Compact cylinder boring machine for accurate small-engine and automotive cylinder reconditioning.
T8014A
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Boring Diameter
Φ65-Φ140 mm
02Maximum Boring Depth
300 mm
03Spindle Speed
250, 380 rpm
04Spindle Feed
0.11 mm/rev
05Spindle Quick Reset
636 mm/s
06Voltage
220 / 380 V
07Motor Power
0.25 / 0.37 kW
08Overall Dimensions
320 × 330 × 850 mm
09Machine Weight
62 kg

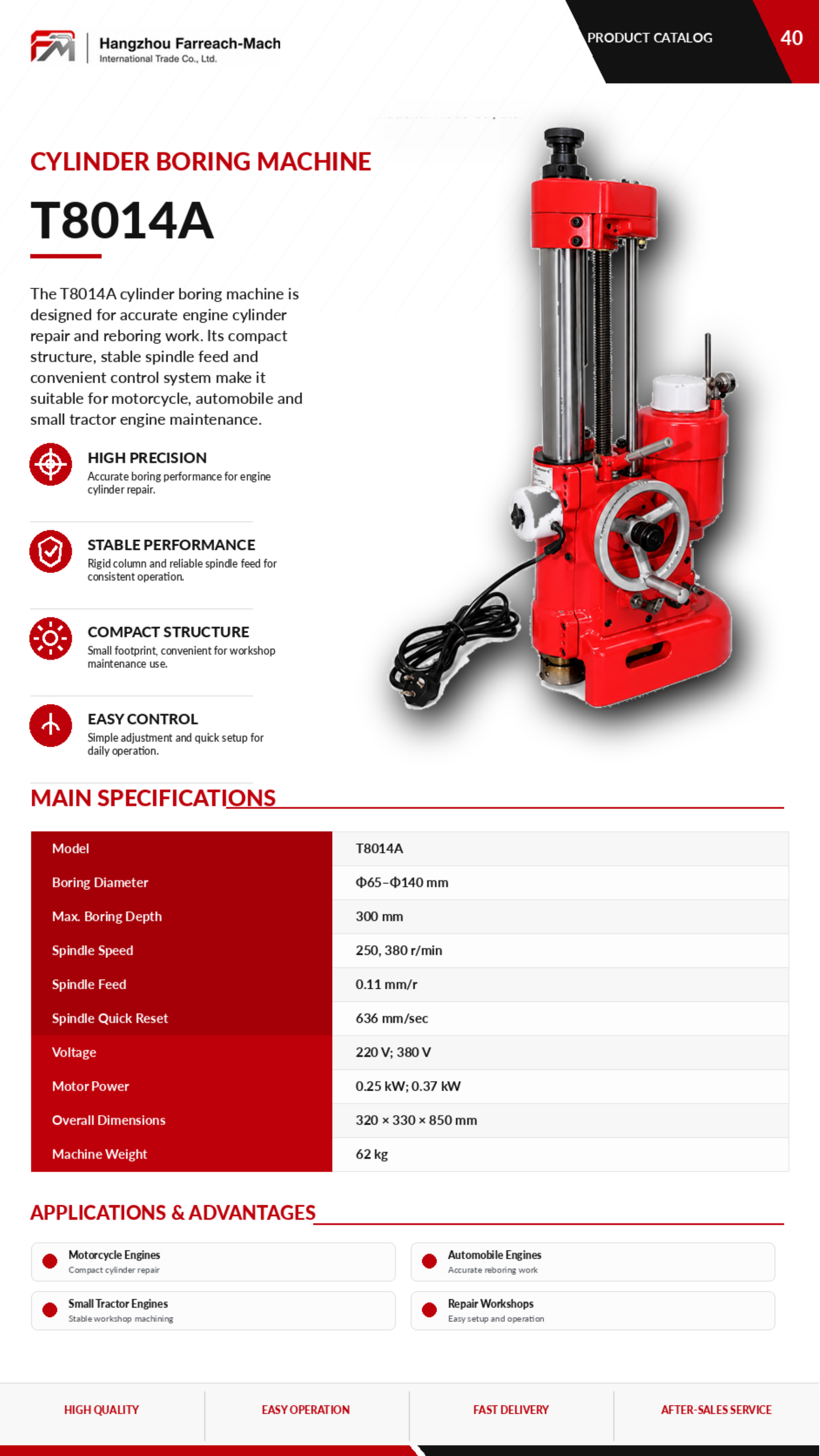

Original source
Catalogue parameter page.
