T8016A
Cylinder Boring Machine
Cylinder boring machine with a wider machining range and stable feed for engine rebuilding workshops.
T8016A
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Boring Diameter
Φ80-Φ165 mm
02Maximum Boring Depth
400 mm
03Spindle Speed
200, 300 rpm
04Spindle Feed Rate
0.12 mm/rev
05Spindle Rapid Return
780 mm/min
06Motor Voltage
220 / 380 V
07Motor Power
0.25 / 0.37 kW
08Motor Speed
1440 rpm
09Overall Dimensions
360 × 345 × 1100 mm
10Packing Dimensions
500 × 490 × 1270 mm
11Weight
85 kg

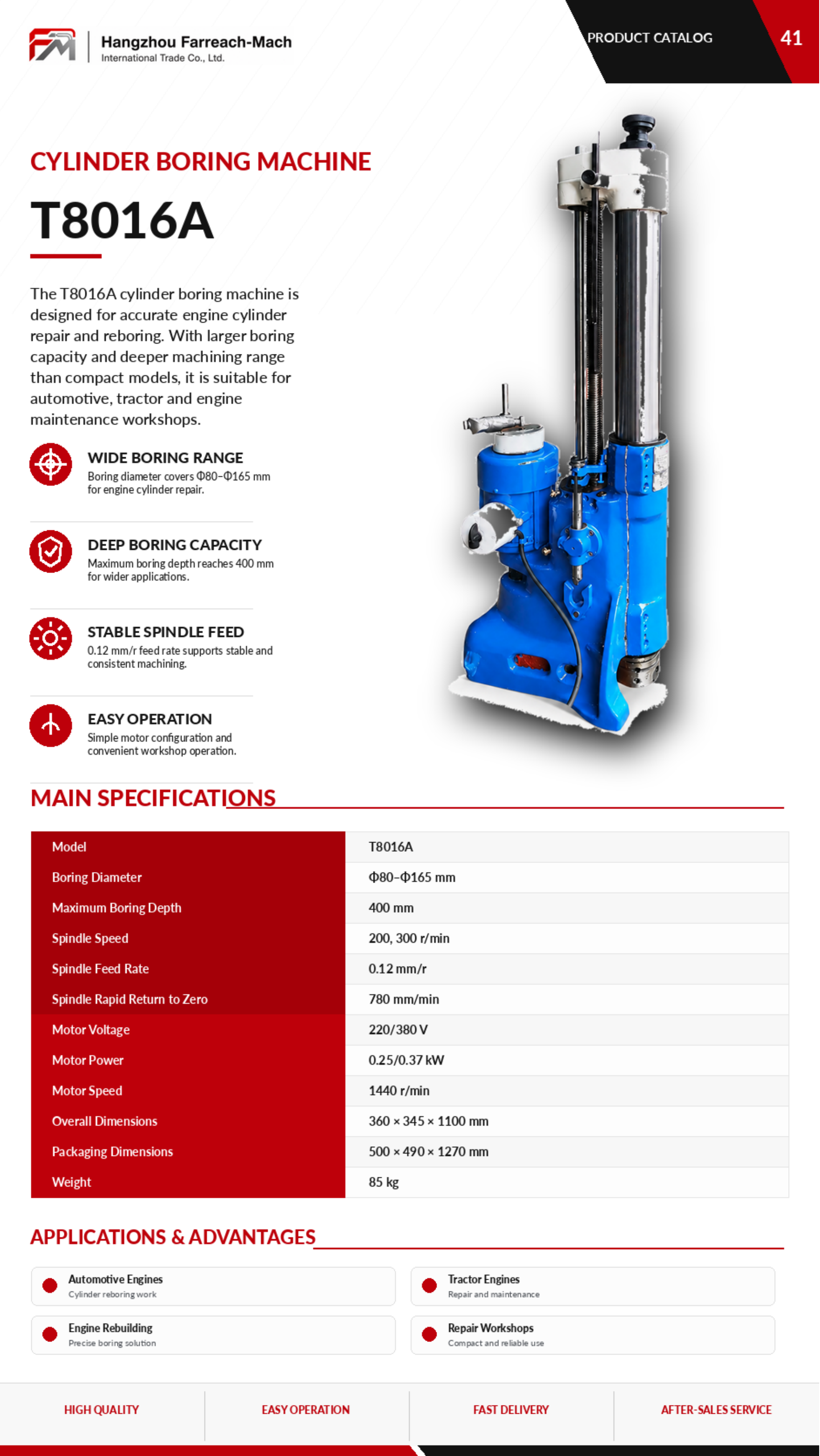

Original source
Catalogue parameter page.
