T8018A

Cylinder Boring Machine

Heavy-duty cylinder boring machine with infinitely variable spindle speed for automotive and diesel engine blocks.

T8018A

Verified technical data

Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.

01Boring Diameter Range

30–180 mm

02Maximum Boring Depth

450 mm

03Distance from Spindle Centerline to Machine Body

320 mm

04Spindle Speed

Infinitely variable

05Spindle Feed Rates

0.05, 0.10, 0.20 mm/r

06Distance Between Spindle Face and Worktable

0–500

07Spindle High-Speed Operation

2.65 meters/minute

08Worktable Dimensions

1200 × 500 mm

09Worktable Travel

Transverse 100 mm, Longitudinal 800 mm

10Machine Power

3.3/4 kW

11Overall Dimensions (L × W × H)

2000 × 1230 × 1920

12Packing Dimensions (L × W × H)

1370 × 1370 × 2250

13Net / Gross Weight

2000 / 2200 kg

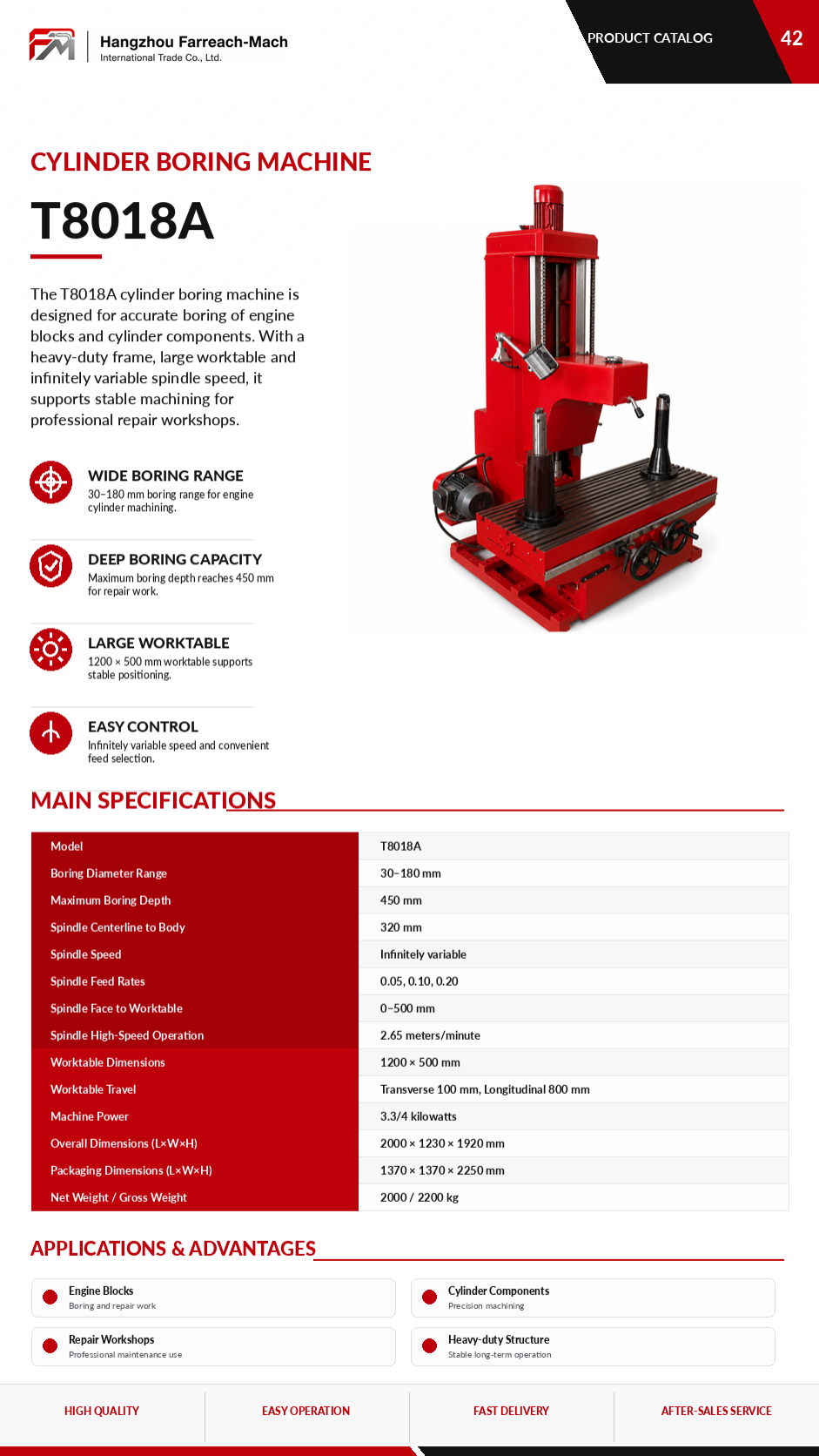

Original source
