T8018B

Cylinder Boring Machine

Cylinder boring machine with stepped spindle speeds and long worktable travel for engine rebuilding workshops.

T8018B

Verified technical data

Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.

01Boring Diameter Range

30–180 mm

02Maximum Boring Depth

450 mm

03Distance from Spindle Centerline to Machine Body

320 mm

04Spindle Speed

175, 230, 300, 350, 460, 600 rpm

05Spindle Feed Rate

0.05, 0.10, 0.20 mm/r

06Distance Between Spindle Face and Worktable

0–500

07Spindle High-Speed Feed Rate

2.65 meters/minute

08Worktable Dimensions

1200 × 500 mm

09Worktable Travel

100 mm lateral, 800 mm longitudinal

10Machine Power

3.3/4 kW

11Overall Dimensions (L × W × H)

2000 × 1235 × 1920

12Packing Dimensions (L × W × H)

1370 × 1440 × 2250

13Net / Gross Weight

2000 / 2200 kg

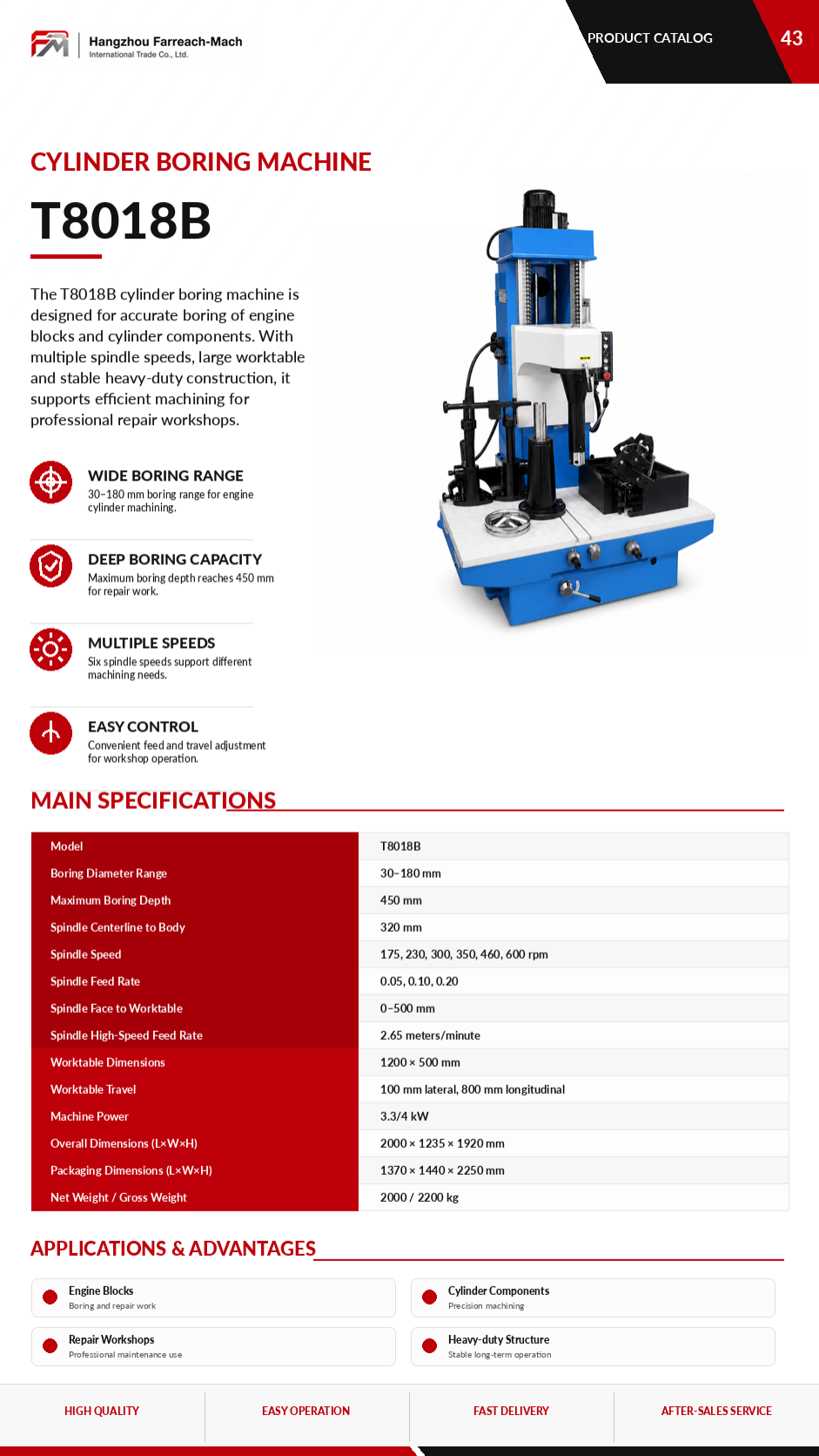

Original source
