Industrial machinery engineered for global workshops
Engine Rebuilding
T8018C
Cylinder Boring Machine
Industrial cylinder boring machine configured for reliable workshop production.
T8018C
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Main Specifications
T8018C
02Processing Diameter
42-180
03Max.Boring Depth
650
04The Rotation Speed Of Spindle
175,230,300,350,460,000
05Spindle Feed
0.05,0.10,0.20
06Machine Power
3.75
07Table size
1680*450
08Overall Dimensions
2680*1500*2325
09Packing Dimensions
1578*1910*2575
10N.W/G.W
3500/3700

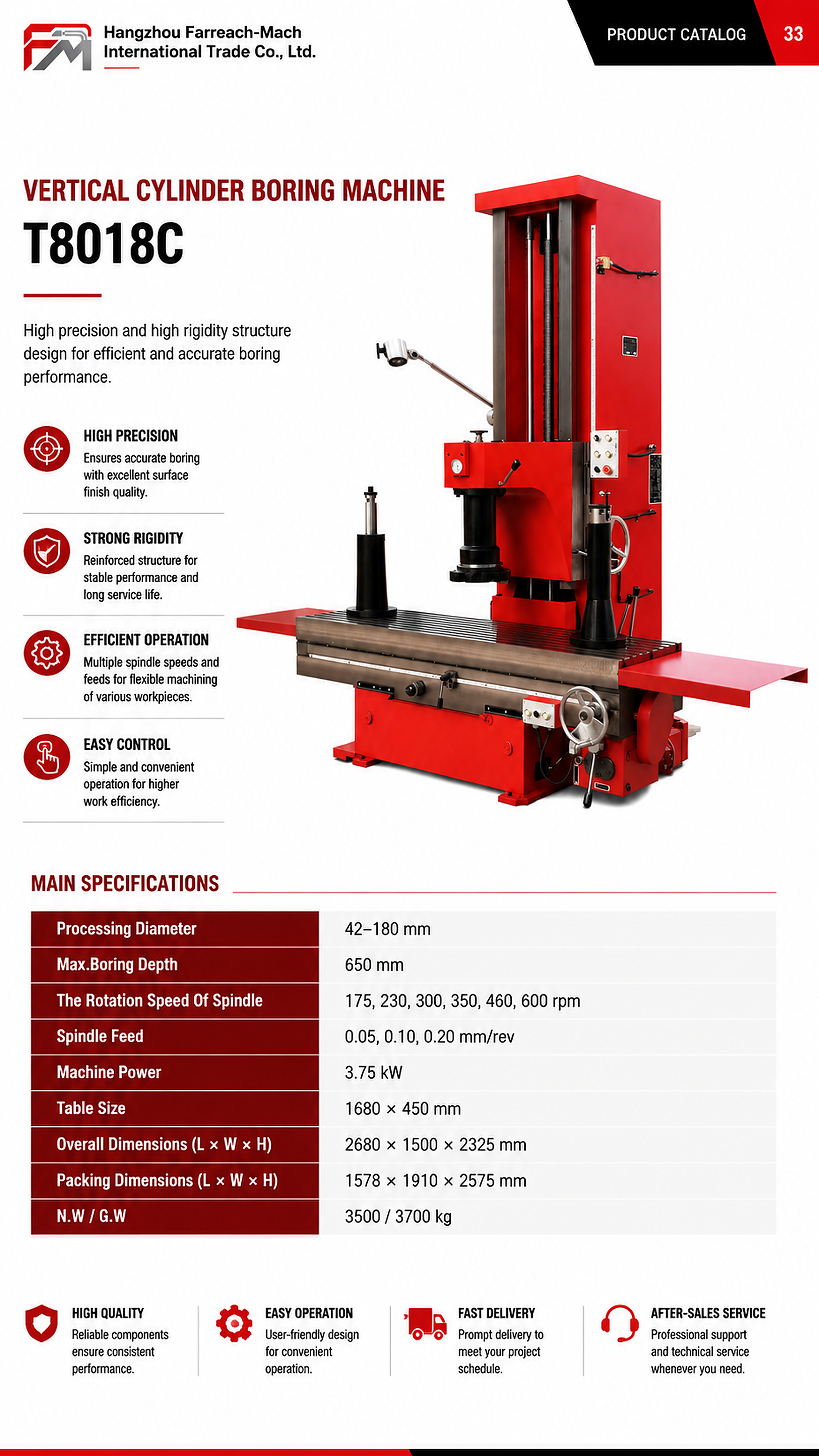

Original source
Catalogue parameter page.
