Engine Rebuilding
T807
Vertical Cylinder Boring Machine
Compact vertical cylinder boring machine with reliable performance, stable spindle feed and straightforward control.
T807
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Processing Diameter
39–70 mm
02Max. Boring Depth
160 mm
03Spindle Rotational Speed
480 r/min
04Spindle Feed
0.09 mm/r
05Machine Power
0.55 kW
06Overall Dimensions (L × W × H)
500 × 480 × 1150 mm
07Packing Dimensions (L × W × H)
600 × 700 × 1400 mm
08Net / Gross Weight
108 / 150 kg

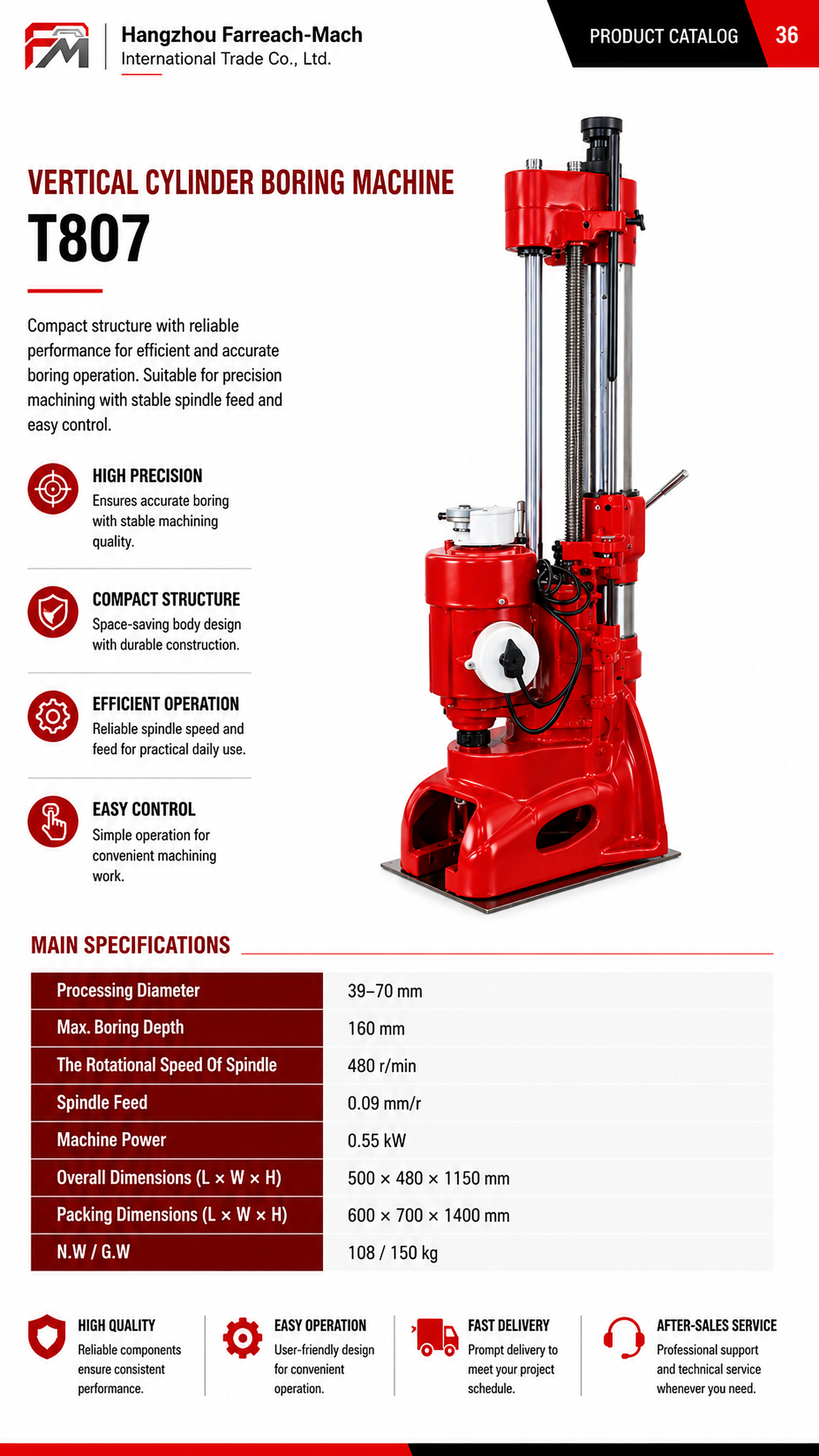

Original source
Catalogue parameter page.
