Engine Rebuilding
T8210D
Con-Rod Bushing Boring Machine
Heavy-duty machine for accurate connecting-rod bushing boring with stable spindle speeds, adjustable feed and convenient control.
T8210D
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Boring Diameter Range
Φ14–Φ140 mm
02Connecting Rod Hole Spacing Range
110–420 mm
03Feed Rate
0–320 mm/min, continuously adjustable
04Worktable Stroke
240 mm
05Spindle Speed
350, 520, 820, 1120 rpm
06Main Motor Specifications
YD90-S-6/4-B5, 0.65/0.85 kW, 960/1440 rpm
07Boring Bar Diameter
Φ14, Φ16, Φ24, Φ40 mm
08Machine Dimensions (L × W × H)
1400 × 530 × 1700 mm
09Machine Weight
1050 kg

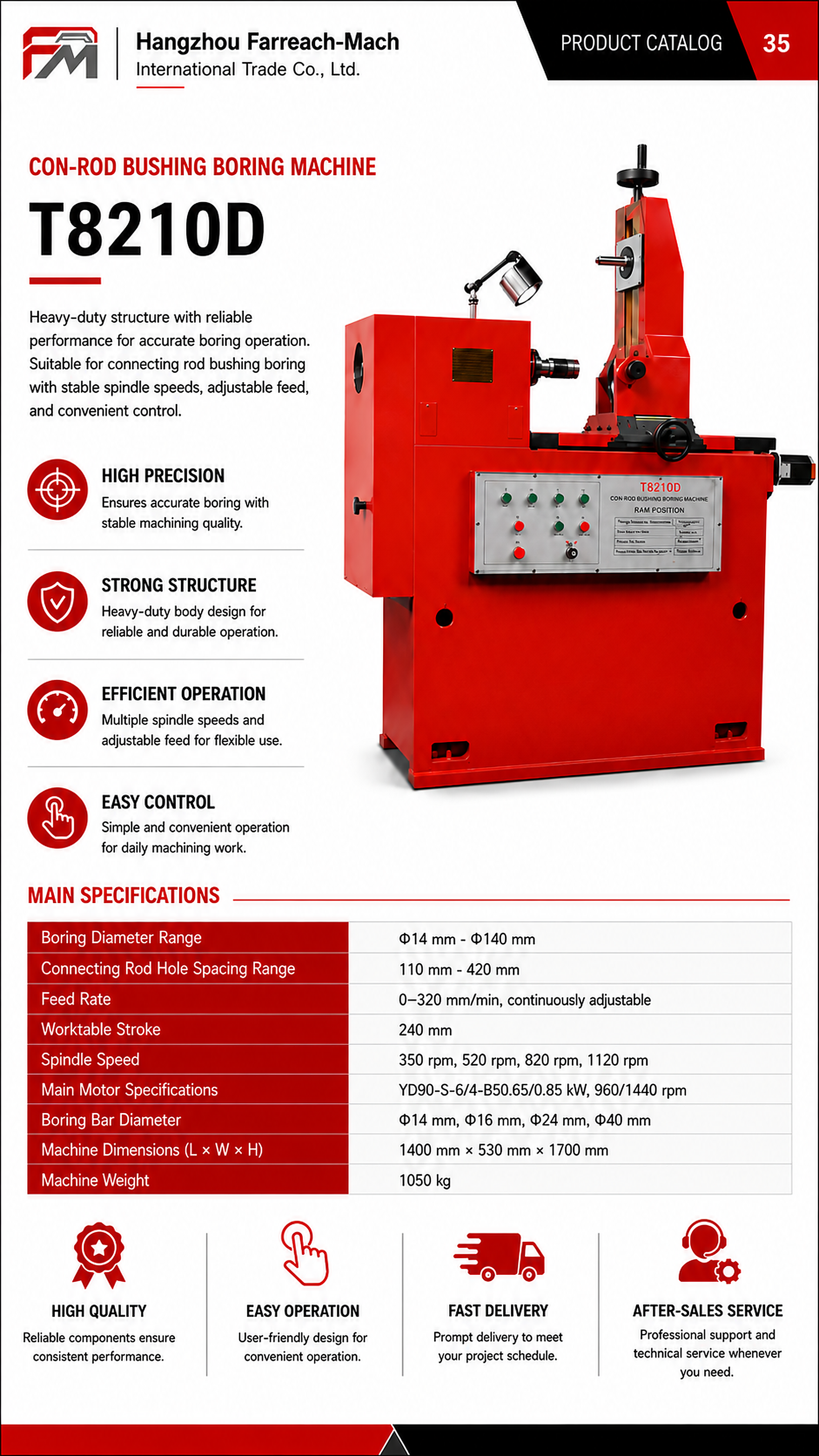

Original source
Catalogue parameter page.
