Brake Service
T8445
Brake Drum & Disc Lathe
Industrial brake drum & disc lathe configured for reliable workshop production.
T8445
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Brake drum diameter
Φ180–Φ450 mm
02Brake disc diameter
Φ102–Φ400 mm (mm)
03Working Stroke (Cutting Stroke) 170 mm
04Spindle Speed 30, 52, 85 rpm
05Feed Rate 0.16 mm/rev
06Motor Power (Configuration 1) 1.1 kW
07Power Supply Specifications (Configuration 1) 380V/50Hz/3PH
08Motor Power (Configuration 2) 1.5 kW
09Power Supply Specifications (Configuration 2) 220V/50(60)Hz/1PH
10Machine Packaging Dimensions (L × W × H) 800 × 980 × 1230 mm
11Machine Net Weight / Gross Weight 270/300 kg

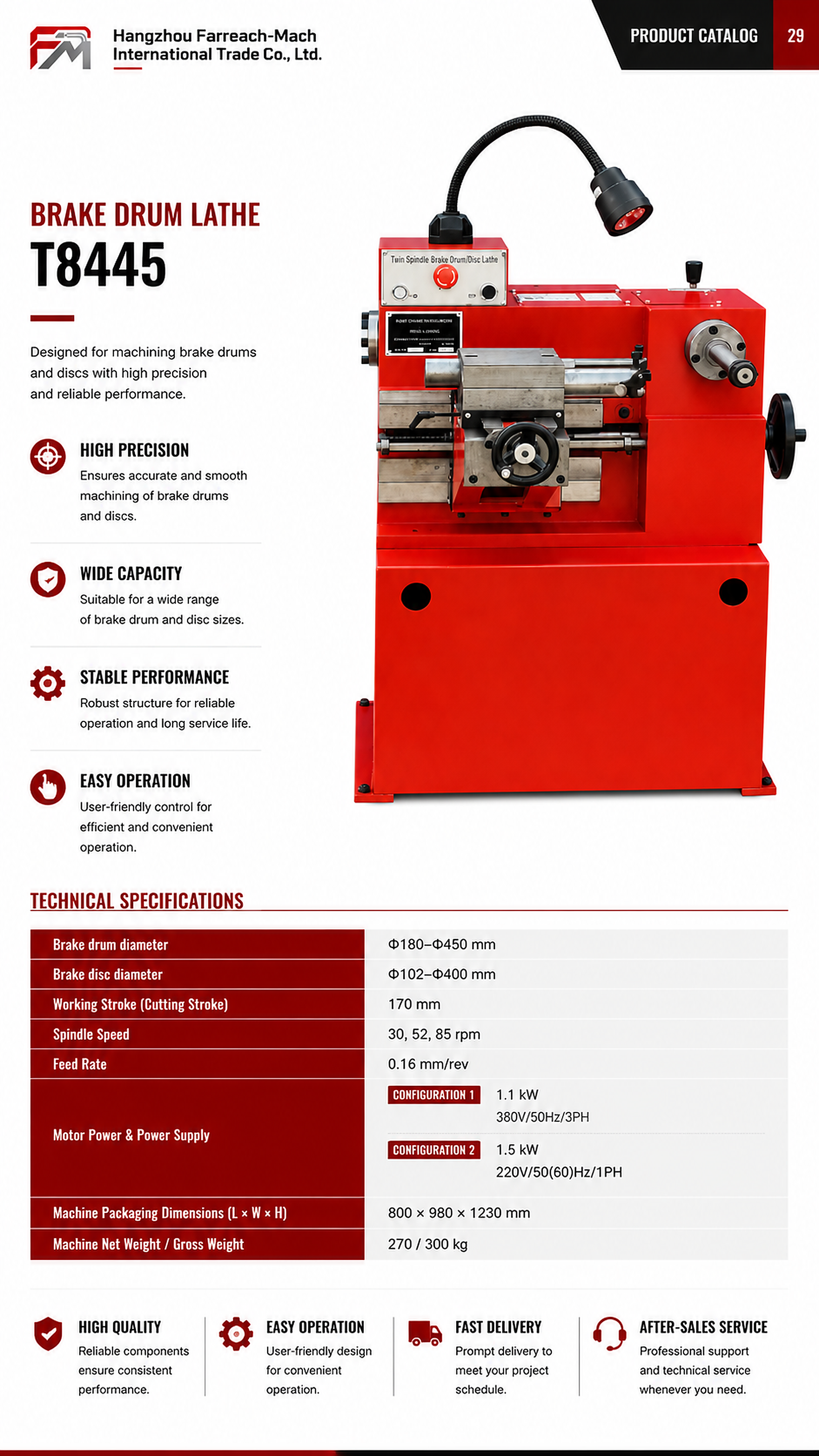

Original source
Catalogue parameter page.
