Industrial machinery engineered for global workshops
Brake Service
T8445A
Brake Drum & Disc Lathe
Industrial brake drum & disc lathe configured for reliable workshop production.
T8445A
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Machining Diameter Range (Brake Drum)
Φ180–450 mm
02Machining Diameter Range (Brake Disc)
≤ Φ400 mm
03Working Stroke (Cutting Travel)
170 mm
04Spindle Speed
30 / 52 / 85 rpm
05Feed Rate
0.16 mm/rev
06Motor Power (Option 1)
1.1 kW
07Power Supply (Option 1)
380V / 50Hz / 3PH
08Packing Dimensions (L × W × H)
800 × 980 × 1230 mm
09Net Weight / Gross Weight
290 / 350 kg

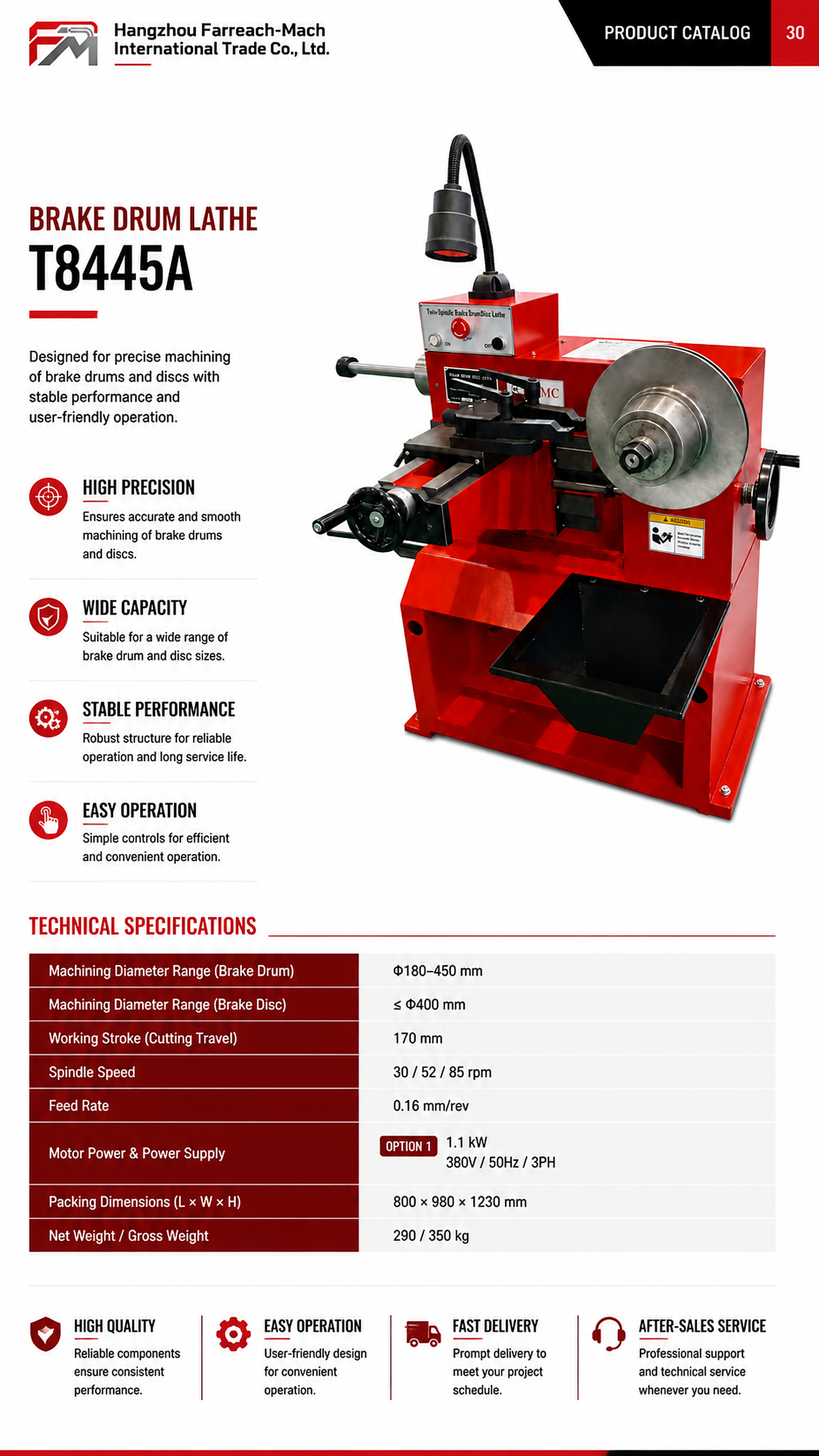

Original source
Catalogue parameter page.
