T8465

Brake Drum & Disc Lathe

Industrial brake drum & disc lathe configured for reliable workshop production.

T8465

Verified technical data

Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.

01Machining Diameter Range (Brake Drum)

Φ180–650 mm

02Machining Diameter Range (Brake Disc)

Φ102–500 mm

03Working Stroke (Cutting Travel)

250 mm

04Spindle Speed

30 / 52 / 85 rpm

05Feed Rate

0.16 mm/rev

06Motor Power (Option 1)

1.1 kW

07Power Supply (Option 1)

380V / 50Hz / 3PH

08Motor Power (Option 2)

1.5 kW

09Power Supply (Option 2)

220V / 50(60)Hz / 1PH

10Packing Dimensions with Lifting Device (L × W × H)

1220x920x1160 mm

11Net Weight / Gross Weight

470/540 kg

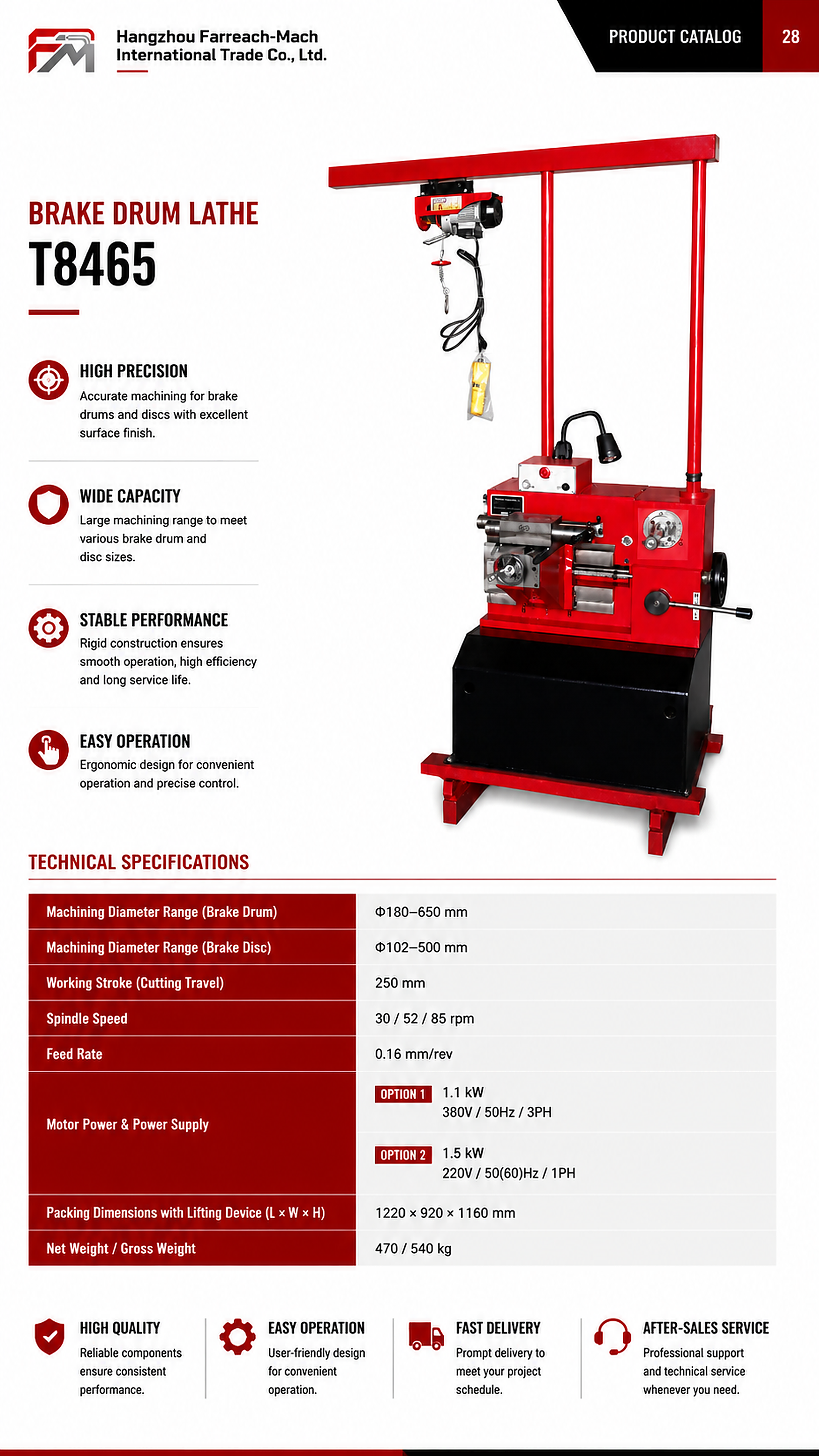

Original source
