XC-100
Slotting Machine
Industrial slotting machine configured for reliable workshop production.
XC-100
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Maximum Slotting Stroke
100 mm
02Minimum Stroke Rate
60 strokes/min
03Maximum Stroke Rate
350 strokes/min
04Spindle Speed Range
6-speed gearbox
05Head Swivel Angle
90°
06Tool Post Rotation Angle
360°
07Table Size
500 × 200 mm
08Table Travel
180 × 170 mm
09Packing Dimensions (L × W × H)
740 × 740 × 1650 mm
10Net Weight / Gross Weight
236 / 286 kg

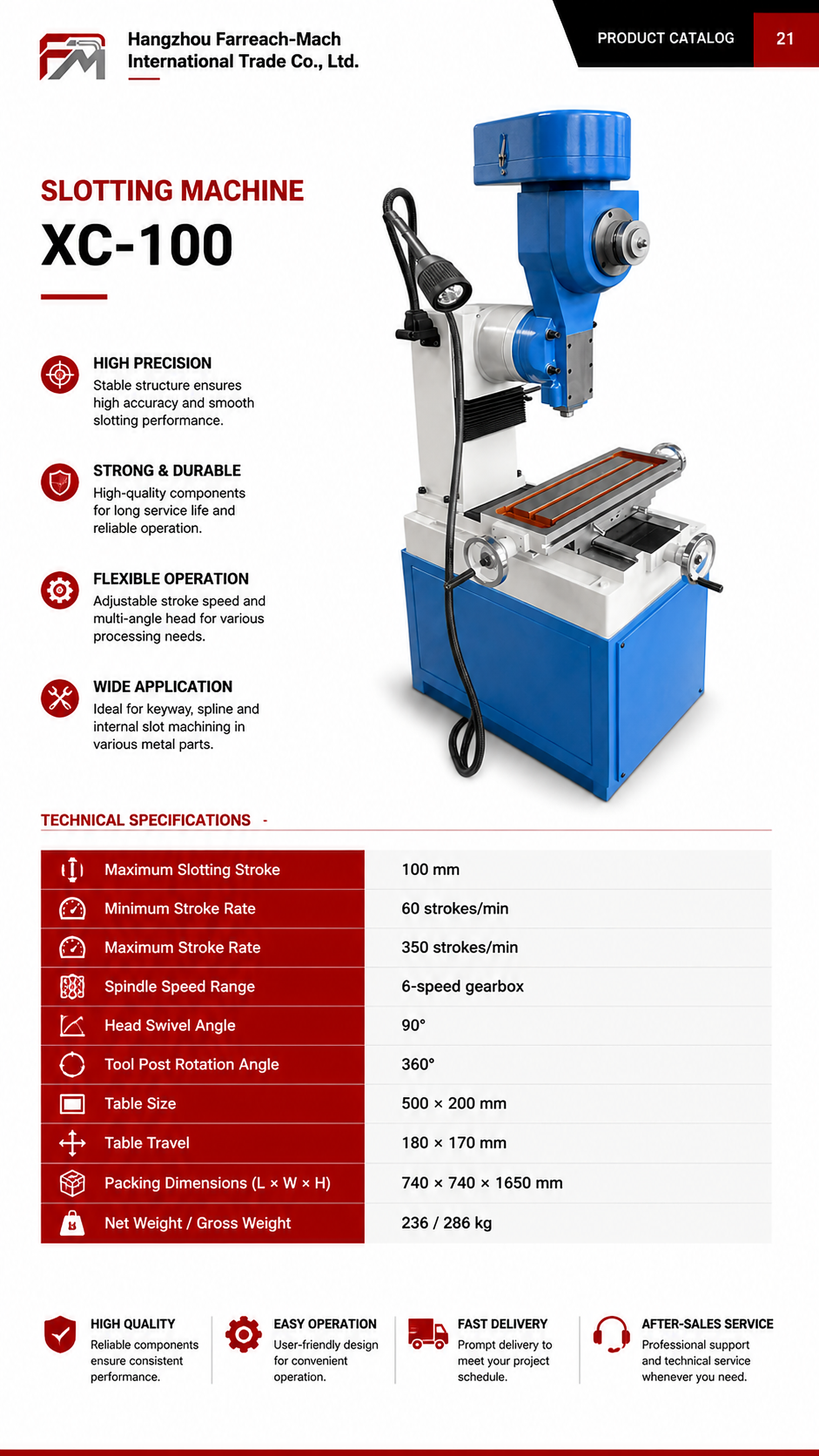

Original source
Catalogue parameter page.
