Industrial machinery engineered for global workshops
Hydraulic Presses
YTJ-200
Tire Press
Industrial tire press configured for reliable workshop production.
YTJ-200
Verified technical data
Technical specifications.
Parameters are transcribed from the supplied product workbook and catalogue image. The original source page is shown below for direct verification.
01Main Equipment Specifications
YTJ-200
02Nominal Pressure (kN)
2000
03Liquid Working Pressure (MPa)
31.5
04Effective Stroke (mm)
500
05Maximum Opening Height (mm)
1000
06Workbench Effective Dimensions (Left-Right × Front-Back) (mm)
1200 × 750
07Motor Power (kW)
5.5
08Included Die Set
1
09Packaging Dimensions (L × W × H) (mm)
1730 × 910 × 2220
10Net Weight/Gross Weight (kg)
2200/2300

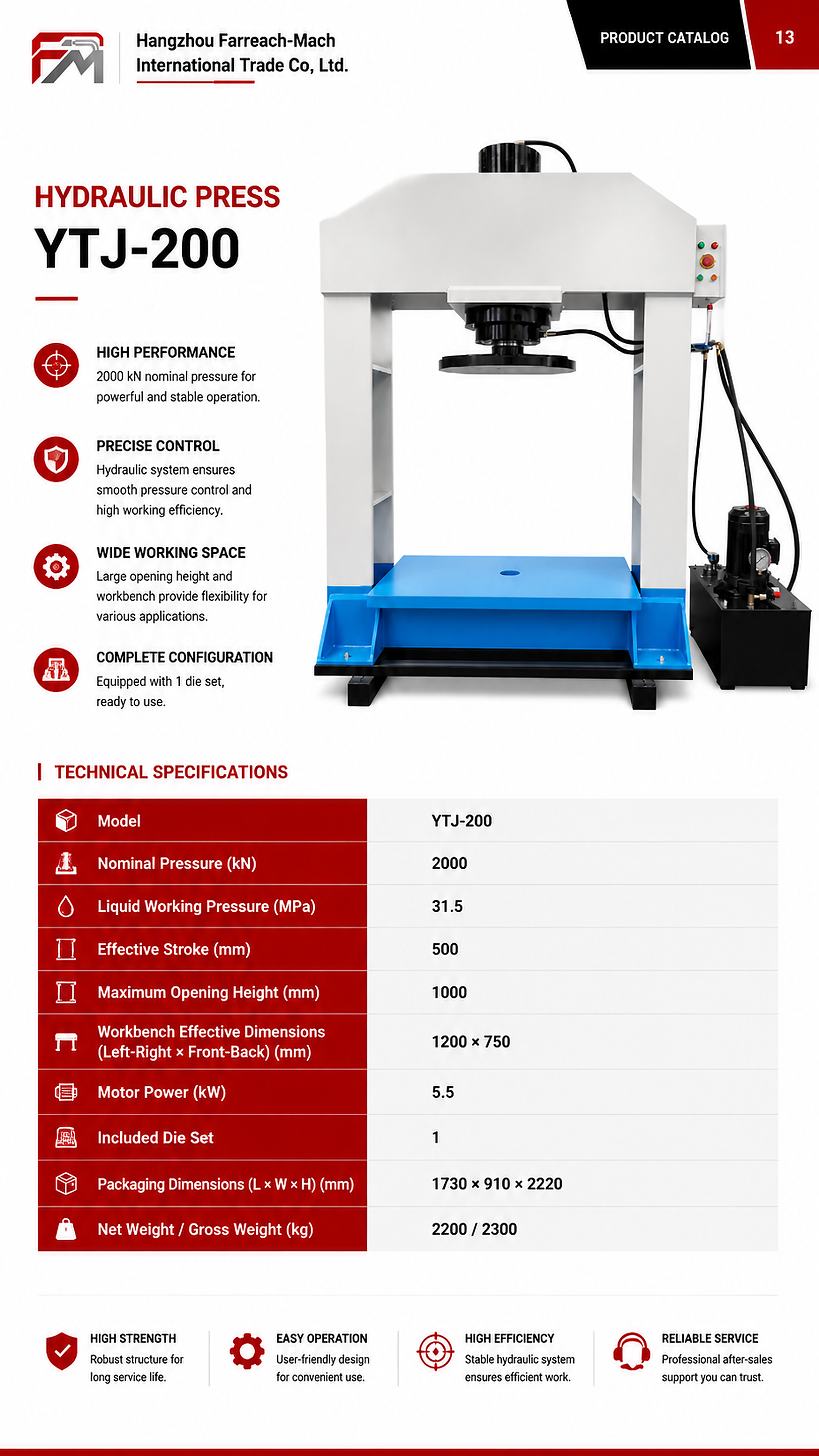

Original source
Catalogue parameter page.
